Beetle ESP32 C6 Mini Development Board

  • Sale
  • Regular price 29 QAR
  • Product ID: VT-2939
    We do not currently have an estimate for arrival date. Contact us for urgent custom order!
    This product is available.

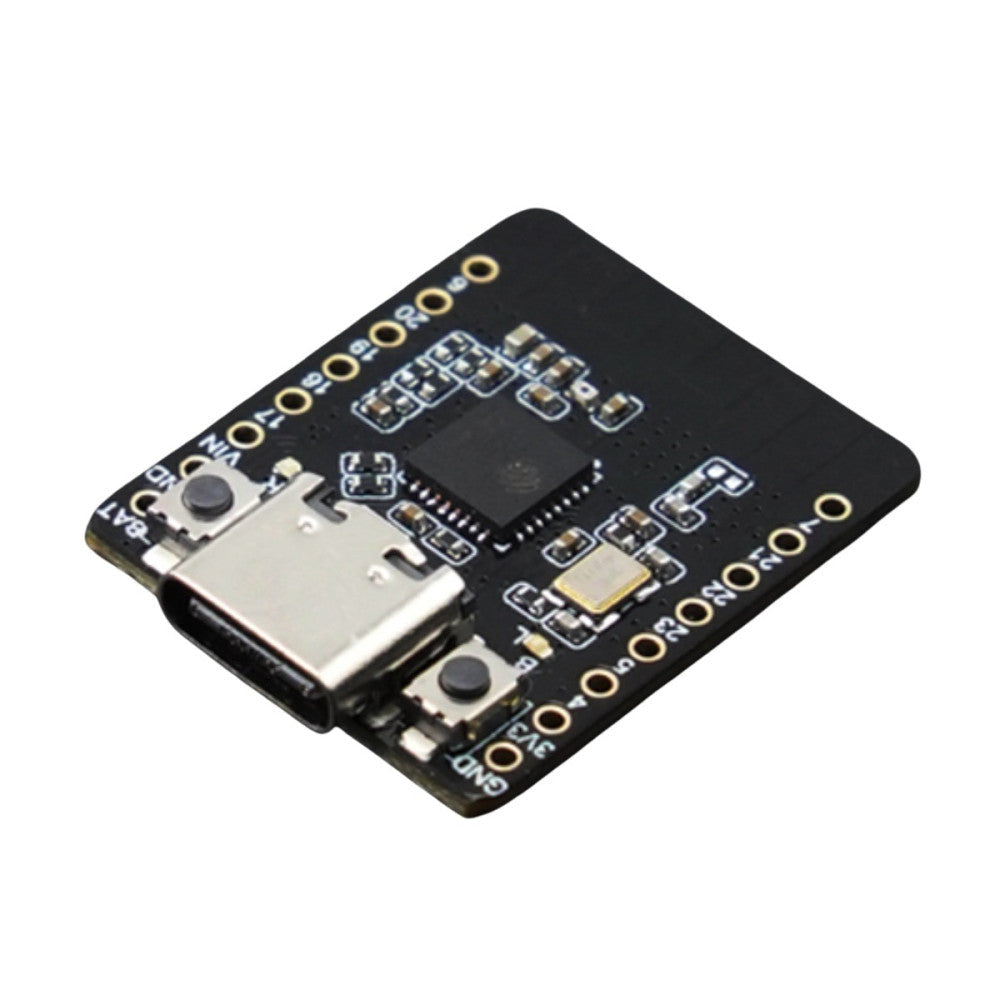

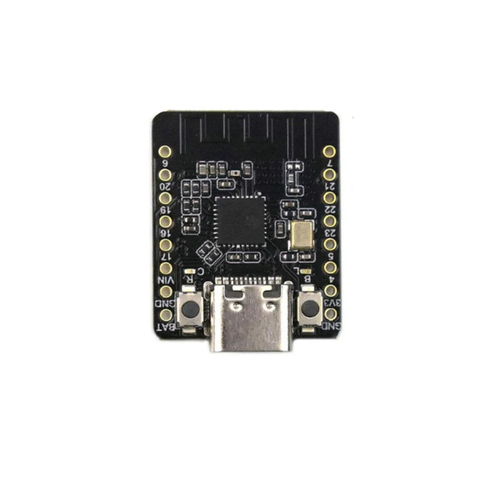

    Beetle ESP32-C6 is a mini size Arduino low-power IoT development board based on the ESP32-C6 chip, featuring a compact design with dimensions as small as a coin (25*20.5mm). The ESP32-C6 is equipped with a high-performance 160MHz RISC-V 32-bit processor, supporting communication protocols such as Wi-Fi 6, Bluetooth 5, Zigbee 3.0, and Thread 1.3. It is capable of connecting to various IoT networks using multiple communication protocols, making it ideal for use as a Matter terminal device. The development board integrates lithium battery charging management, allowing for battery charging without the need for external modules. This feature contributes to a more compact project size, making it highly suitable for wearable applications.

    Highly integrated with an ultra-compact size

    In a form factor no larger than a coin, the Beetle ESP32-C6 provides up to 13 IO ports, alleviating concerns about insufficient IO ports during project development. The Beetle ESP32-C6 integrates lithium battery charging management, ensuring the safe charging of lithium batteries. Moreover, this development board supports battery voltage monitoring, enabling proactive measures to be taken in case of low battery levels, guaranteeing continuous device operation.


    • Ultra-compact size, measuring only 25*20.5mm.
    • Equipped with the ESP32-C6 chip, it supports communication protocols including Wi-Fi, BLE, Zigbee, and Thread.
    • Supports Wi-Fi 6 protocol for lower latency and lower power consumption.
    • Ultra-low power consumption with deep sleep at 14uA.
    • Integrated lithium battery charging functionality.
    • Supports battery voltage detection, providing insights into device power levels.

    Basic Parameters

    • Operating Voltage: 3.3V
    • Type-C Input Voltage: 5V DC
    • VIN Input Voltage: 5V DC
    • Max Charging Current: 0.5A
    • Sleep current: 14uA (in deep sleep mode, powered by battery)
    • Operating Temperature: -10~60℃

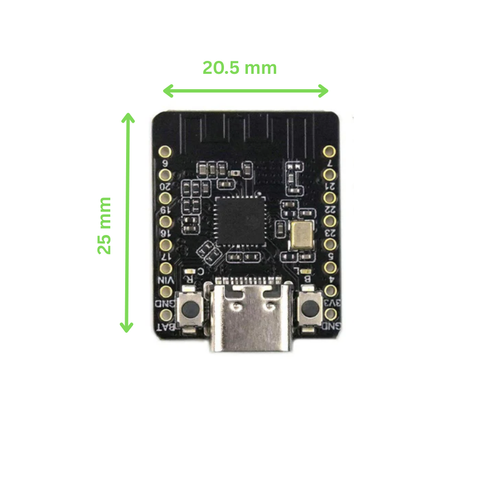

    • Dimension: 25x20.5mm/0.98x0.81”

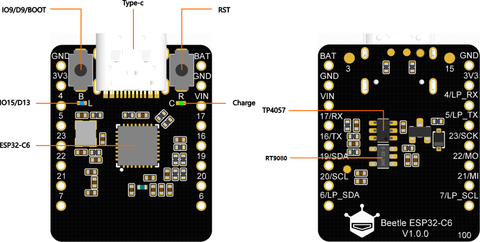

    Hardware Information

    • Processor: RISC-V single-core processor
    • Main Frequency: 160 MHz
    • SRAM: 512KB
    • ROM: 320KB
    • Flash: 4MB
    • RTC SRAM: 16KB
    • USB: USB 2.0 CDC


    • WIFI Protocol: IEEE 802.11b/g/n
                   IEEE 802.11ax (20 MHz-only non-AP mode)
    • Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band
    • WIFI Mode: Station, SoftAP, SoftAP+Station combined mode
    • WIFI Frequency: 2.4GHz
    • Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU


    • Bluetooth Protocol: Bluetooth 5, Bluetooth mesh
    • Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

    IEEE 802.15.4

    • Compatible with IEEE 802.15.4-2015 protocol
    • Frequency band: 2.4GHz
    • Data rate: 250Kbps
    • Supports Thread 1.3 and Zigbee 3.0

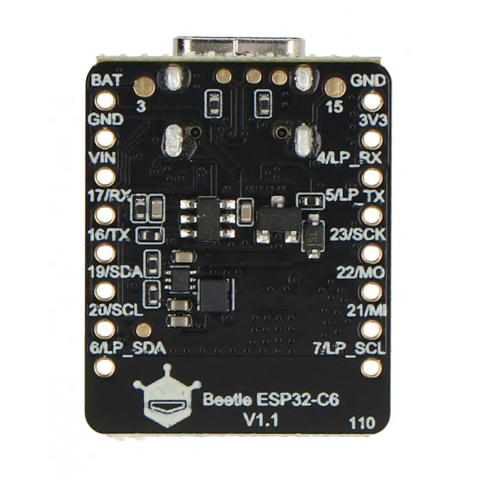

    • Digital I/O x13
    • LED PWM 6 Channel
    • SPI x1
    • UART x3 (LP UART x1)
    • I2C x2 (LP I2C x1)
    • I2S x1
    • IR Transceiver: transmit channel x5, receive channel x5
    • 1 × 12-bit SAR ADC, 7 Channel
    • DMA Controller: transmit channel x3, receive channel x3
