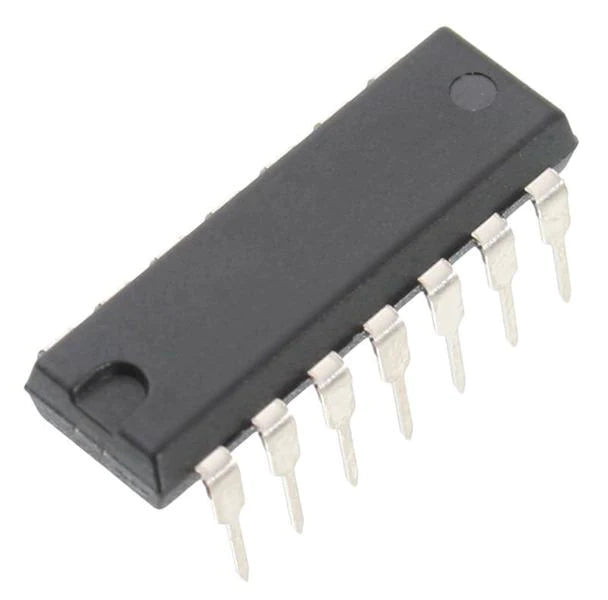

7448 BCD to 7-Segment Decoder/Driver IC

The 7448 is a TTL logic IC designed to decode 4-bit BCD inputs and drive a 7-segment display.
It converts binary-coded decimal values into corresponding segment control signals.
The device supports driving common-cathode 7-segment displays with active-high outputs.
It operates from a single 5 V supply and is compatible with standard TTL logic levels.
Typical applications include numeric displays in counters, clocks, measuring instruments, and digital panels.

• BCD Input Decoder converting 4-bit BCD to 7-segment outputs

• Active-High Outputs suitable for common-cathode displays

• TTL Logic Family compatible with standard TTL levels

• Lamp Test Input enabling segment verification

• Blanking Input Control supporting display suppression

• Ripple Blanking Support for multi-digit display systems

• Model | 7448

• Device Type | BCD to 7-Segment Decoder/Driver IC

• Logic Family | TTL

• Input Format | 4-Bit BCD

• Display Type | Common-Cathode 7-Segment

• Output Type | Totem-Pole

• Supply Voltage | 5 V

• Output Source Current (Max) | 2 mA per segment

• Propagation Delay (Typical) | 25 ns

• Operating Temperature Range | 0 °C to 70 °C

• Package Type | 16-Pin DIP
