Arduino UNO Q

  • Sale
  • Regular price 245 QAR
Product ID: VT-4466
2 in stock


The Arduino UNO Q is a next-generation, hybrid development board that integrates a powerful microprocessor unit (MPU) with a real-time microcontroller unit (MCU) on a single platform. Powered by the Qualcomm® Dragonwing™ QRB2210 MPU, it runs a full Debian Linux OS and is equipped with a quad-core 2.0 GHz CPU, 2GB RAM, and 16GB eMMC storage, making it ideal for demanding tasks like on-device AI, computer vision, and advanced robotics. Simultaneously, its real-time STM32U585 MCU provides the precise, low-latency hardware control essential for robotics and data acquisition. Complete with Wi-Fi 5, Bluetooth 5.1, and full compatibility with the Arduino UNO ecosystem, the UNO Q is engineered to be the all-in-one solution for complex IoT projects and edge computing innovations.



Microprocessor Unit (MPU) - Qualcomm Dragonwing™ QRB2210

CPU: Quad-core Arm® Cortex®-A53 @ 2.0 GHzGPU: Adreno 702 @ 845 MHz (3D graphics accelerator)ISP: Dual Image Signal Processor (Supports 13 MP + 13 MP or 25 MP @ 30 fps)Operating System: Debian Linux OS (with upstream support)RAM: 2 GB (ABX00162) LPDDR4Storage: 16 GB (ABX00162) eMMCMPU I/O: 12x Digital I/O Pins exposed on JMISC headerMPU User Interfaces: 2x RGB LEDs, 1x Power Button



Microcontroller Unit (MCU) - STM32U585

Core: Arm® Cortex®-M33 @ up to 160 MHzOperating System: Arduino Core on Zephyr OSMemory: 2 MB Flash, 786 KB SRAMDigital I/O Pins: 47 total (22x on JANALOG/JDIGITAL headers, 25x on JMISC header)Analog Inputs (ADC): 6x (14-bit resolution)Analog Outputs (DAC): 2x (12-bit resolution)PWM Pins: 6xCommunication Protocols: 4x I2C, 3x SPI, 3x USART, 2x UART, 1x FDCAN, 2x SAI, 1x PSSIMCU User Interfaces: 2x RGB LEDs, 8x13 Blue LED Matrix



Connectivity & Radio

Wi-Fi: Wi-Fi® 5 (802.11ac), Dual-band 2.4/5 GHz with onboard antennaBluetooth: Bluetooth® 5.1 with onboard antenna



Interfaces & Media

USB Port: 1x USB-C® port (Supports Host/Device switching, Power Delivery, Video Output)Video Output: USB-C® DisplayPort, MIPI DSI (via JMEDIA header)Camera Input: USB UVC cameras (via USB-C dongle), Dual MIPI CSI (via JMEDIA header)Audio: 3.5mm Jack functionality for Microphone IN, Headphone OUT, Line OUT (via JMISC header)Special Connectors:
       1x Qwiic Connector (I2C, 3.3V)
       1x JCTL Connector (MPU Remote Debug)



Power

Main Power Input: 5 VDC @ 3 A max via USB-C® connectorVIN Input Voltage: 7 - 24 VDCI/O Operating Voltage: 3.3 VDC for MCU (5V tolerant on some pins), 1.8 VDC for MPUDC Current per I/O Pin: 20 mA

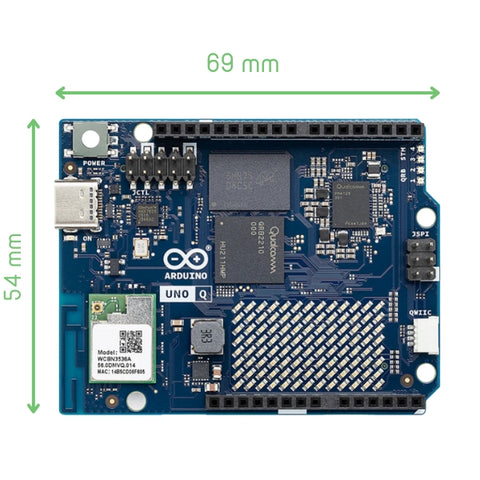

Physical Dimensions

Length: 68.58 mmWidth: 53.34 mm
