Arduino UNO Prototype Shield Expansion Board

The Arduino UNO Prototype Shield Expansion Board provides a convenient platform for building and testing custom circuits directly on top of an Arduino UNO.
It features a prototyping area compatible with through-hole components and standard DIP ICs.
The shield stacks directly onto Arduino UNO boards using standard header connections.
Dedicated power and ground rails simplify circuit development and wiring.
It is suitable for rapid prototyping, educational projects, and embedded system development.

• Integrated Prototyping Area for custom circuit assembly

• DIP IC Compatible Layout supporting standard integrated circuits

• Power and Ground Rails for organized wiring

• Reset Button Access for convenient board control

• Arduino UNO Compatible Headers for direct stacking

• Through-Hole Design compatible with common electronic components

• Product Type | Prototype Expansion Shield

• Compatibility | Arduino UNO and compatible boards

• Prototyping Area | Through-hole grid layout

• Logic Voltage | 5 V (Arduino compatible)

• Mounting Type | Arduino shield stackable

• Header Type | Standard Arduino pin headers

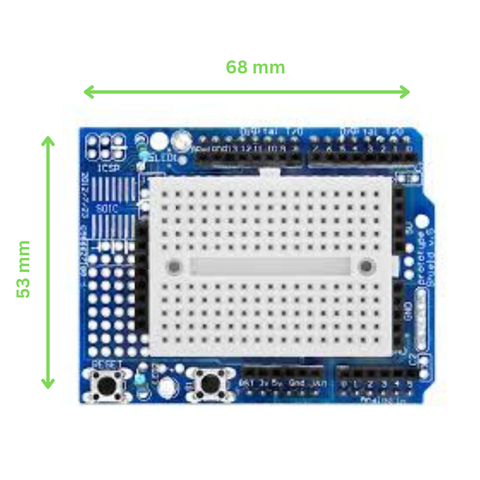

• Dimensions | 68 mm × 53 mm

• 3D Model
