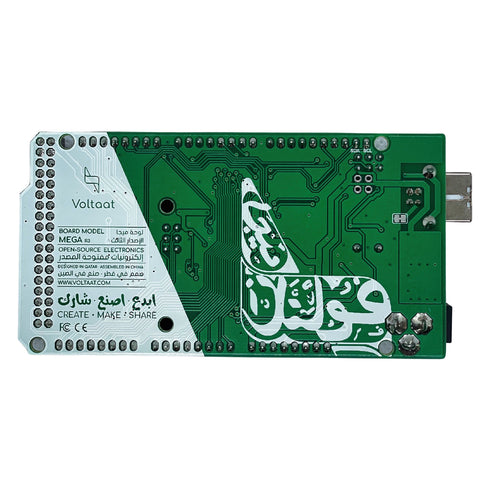

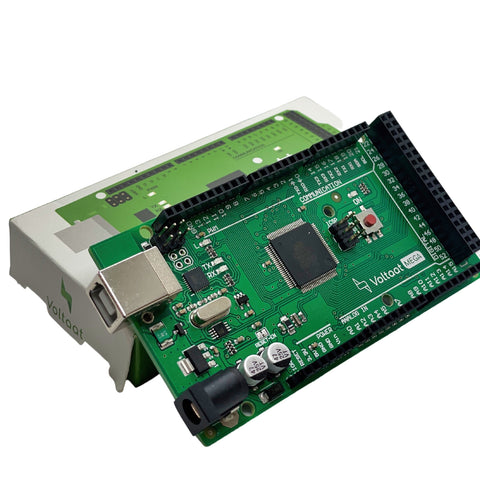

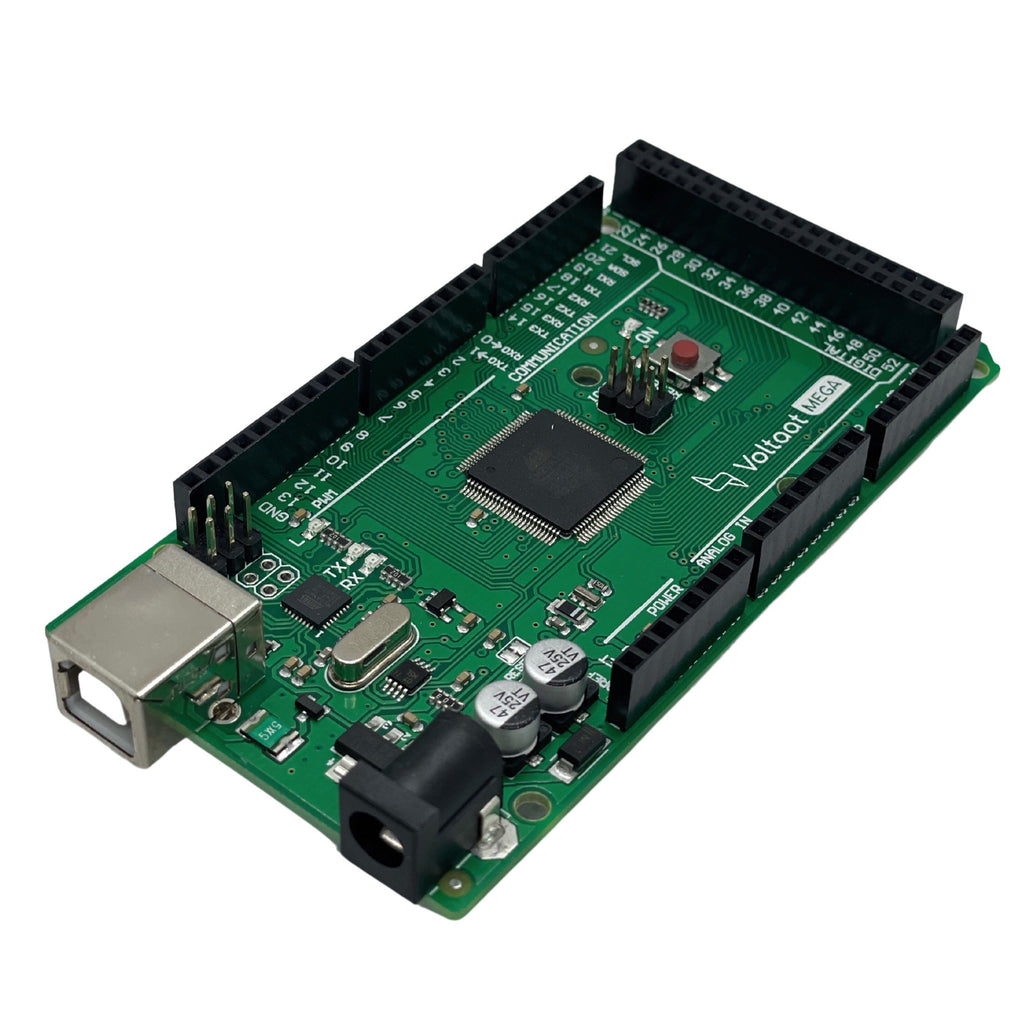

Placeholder Arduino Mega 2560 R3 Development Board – Voltaat Version

Arduino Mega 2560 R3 Development Board – Voltaat Version

  • Sale
  • Regular price 69 QAR
Product ID: VT-3101
This product is available.

We do not currently have an estimate for arrival date. Contact us for urgent custom order!

Introducing the first Qatari Arduino Mega board. This is an awesome version of the original Arduino Mega board that has all the components of the Arduino Mega . It works exactly the same as the original Arduino Mega but for a much cheaper price!
This Qatari Arduino Mega board is a locally developed version based on the original Arduino Mega design. It includes the full set of core components required for equivalent functionality and operates identically to the standard Arduino Mega board. The board supports the development of standalone embedded systems as well as integration with computer-based software environments. It is fully compatible with the Arduino open-source IDE, which is available for Mac OS X, Windows, and Linux.

  • ATmega2560 8-bit AVR microcontroller
  • 256 KB flash memory with bootloader support
  • 8 KB SRAM and 4 KB EEPROM memory
  • 54 digital I/O pins with 15 PWM outputs
  • 16 analog input channels
  • Four hardware UART serial interfaces
  • SPI communication interface support
  • I2C communication interface support
  • 16 MHz crystal oscillator clock source
  • 5 V logic operating voltage
  • Recommended input voltage range 7–12 V
  • Input voltage limits 6–20 V
  • USB Type-B interface for programming
  • External DC power jack support
  • Onboard voltage regulation circuitry
  • ICSP header for low-level programming
  • Reset button for manual system reset
  • Standard Arduino Mega form factor
  • Shield compatibility with Mega ecosystem
  • Arduino IDE software compatibility



  • Microcontroller: ATmega2560
  • Operating Voltage: 5 V
  • Input Voltage (Recommended): 7–12 V
  • Input Voltage (Limits): 6–20 V
  • Digital I/O Pins: 54 (15 PWM outputs)
  • Analog Input Pins: 16
  • DC Current per I/O Pin: 40 mA
  • DC Current for 3.3 V Pin: 50 mA
  • Flash Memory: 256 KB (8 KB used by bootloader)
  • SRAM: 8 KB
  • EEPROM: 4 KB
  • Clock Speed: 16 MHz
  • USB Interface: USB Type-B
  • Communication Interfaces: UART, SPI, I2C
  • Power Supply Options: USB or external power jack
  • Form Factor: Arduino Mega compatible layout
  • Shield Compatibility: Compatible with Arduino Mega shields
