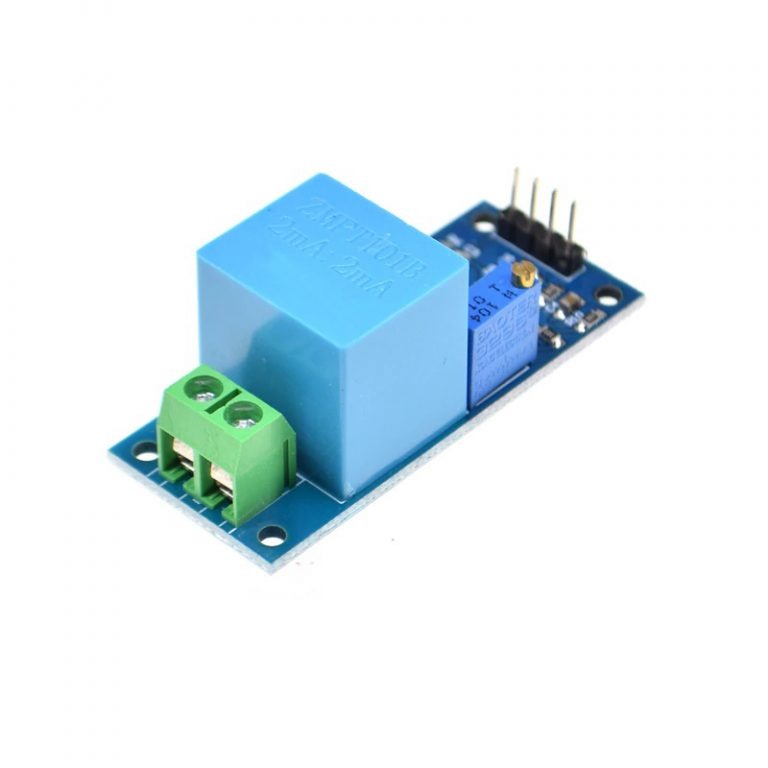

AC Voltage Sensor Module – ZMPT101B Single Phase Voltage Transformer

The ZMPT101B AC Voltage Sensor Module is a compact sensing module designed for accurate measurement of single-phase AC voltage in embedded and monitoring systems. It uses a precision ZMPT101B miniature voltage transformer with an onboard operational amplifier circuit for stable signal conditioning and accurate analog output. The module supports voltage measurement up to 250V AC and features an adjustable calibration potentiometer for fine tuning. Its high galvanic isolation and wide operating voltage range make it suitable for microcontroller platforms such as Arduino, ESP8266, and Raspberry Pi. Ideal for energy monitoring systems, smart meters, and electrical measurement projects.

• ZMPT101B precision voltage transformer sensing element

• AC voltage measurement up to 250V AC

• Onboard operational amplifier signal conditioning circuit

• Adjustable calibration potentiometer for accurate output

• Analog voltage output proportional to AC input

• High galvanic isolation between input and output

• Wide supply voltage range 5V–30V DC

• Compact PCB module for embedded applications

• Stable and consistent measurement performance

• Suitable for single-phase AC voltage monitoring

• Compatible with Arduino, ESP8266, and Raspberry Pi

• Lightweight design for integration in measurement systems


• Sensor Type: AC Voltage Transformer Module

• Transformer Model: ZMPT101B

• Measurement Voltage Range: 0–250V AC

• Supply Voltage: 5–30V DC

• Output Signal: Analog Voltage Output

• Signal Conditioning: Onboard Operational Amplifier Circuit

• Calibration Method: Adjustable Potentiometer

• Isolation Type: Galvanic Isolation via Voltage Transformer

• Operating Temperature: -40°C to +70°C

• PCB Dimensions: 49.5mm x 19.4mm

• Phase Type: Single Phase AC Measurement

• Supported Platforms: Arduino, ESP8266, Raspberry Pi
