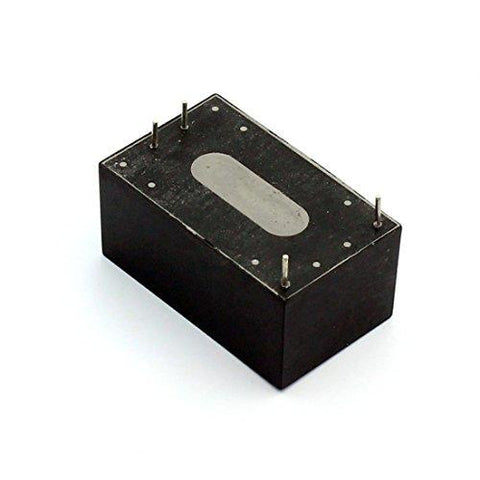

AC/DC Power Supply Module (On-Board)

  • Sale
  • Regular price 24 QAR


The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power module supply. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.

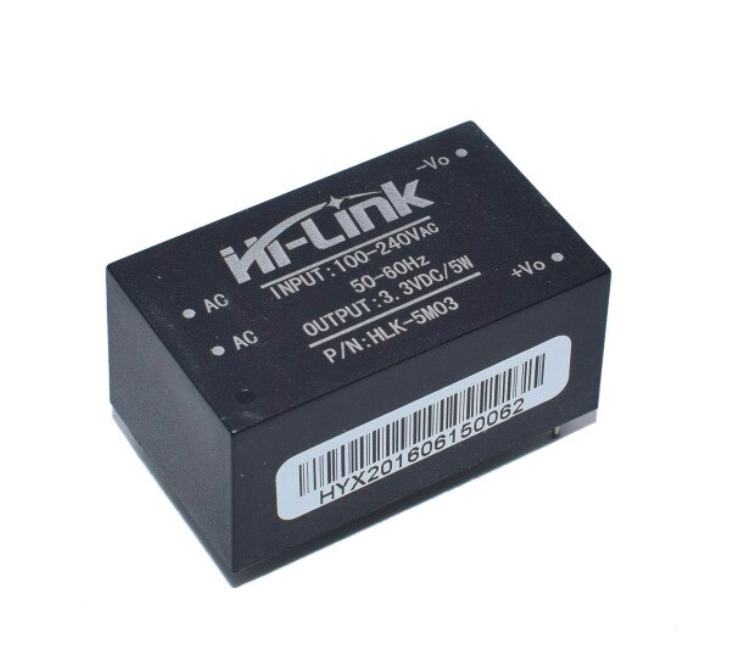

  • Output Voltage 3.3V
  • Output Current: 1500 mA
  • Output Watt: 5W
  • Rated input voltage 90-245 Vac
  • Input voltage range 85-264 Vac Or 70-350Vdc
  • The maximum input current ≤0.2 A
  • Input inrush current ≤10 A
  • Maximum input voltage ≤270 Vac
  • Input start ≤50 mS
  • Input low voltage Vin=110Vac,Input full load ≥69 %
  • Size: 38*23*18 mm

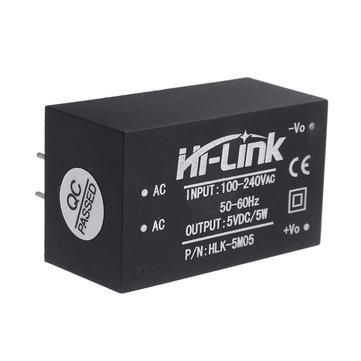

  • Output Voltage 5V
  • Output Current: 1000 mA
  • Output Watt: 5W
  • Rated input voltage 90-245 Vac
  • Input voltage range 85-264 Vac Or 70-350Vdc
  • The maximum input current ≤0.2 A
  • Input inrush current ≤10 A
  • Maximum input voltage ≤270 Vac
  • Input start ≤50 mS
  • Input low voltage Vin=110Vac,Input full load ≥69 %
  • Size: 38*23*18 mm

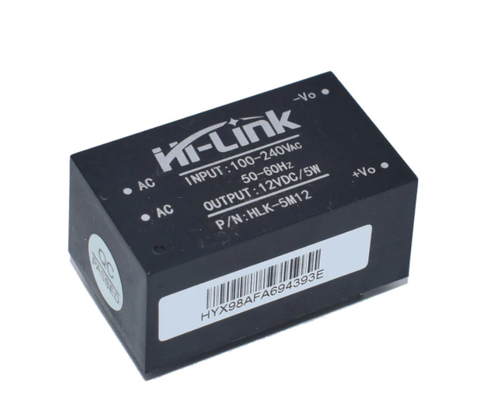

  • Output Voltage 12V
  • Output Current: 450 mA
  • Output Watt: 5W
  • Rated input voltage 90-245 Vac
  • Input voltage range 85-264 Vac Or 70-350Vdc
  • The maximum input current ≤0.2 A
  • Input inrush current ≤10 A
  • Maximum input voltage ≤270 Vac
  • Input start ≤50 mS
  • Input low voltage Vin=110Vac,Input full load ≥69 %
  • Size: 38*23*18 mm
