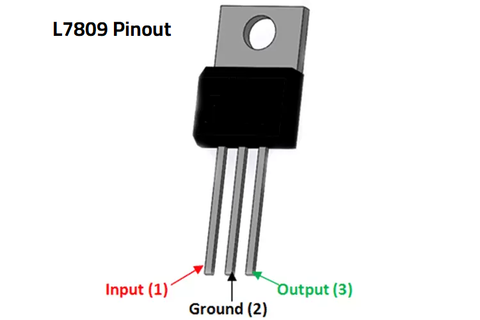

The L7809 is a fixed-output linear voltage regulator designed to provide a stable 9V DC output from a higher input voltage source. It integrates internal reference circuitry, pass elements, and protection mechanisms to maintain reliable voltage regulation under varying load conditions. The device includes built-in current limiting, thermal shutdown, and safe operating area protection, ensuring robust and safe operation. With minimal external component requirements and a durable TO-220 package, the L7809 is widely used in analog circuits, embedded systems, and general-purpose power supply applications.
