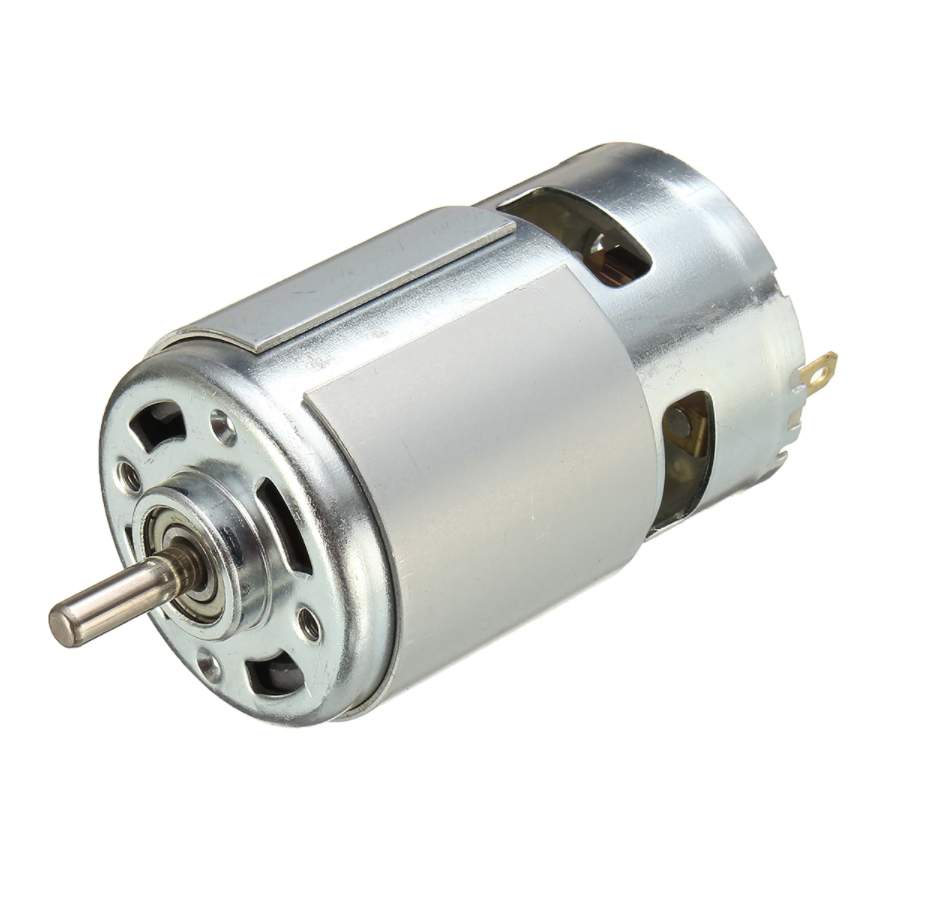

775 Brushed DC Motor – 36V 9000RPM High Torque

The 775 Brushed DC Motor is a high-performance motor designed for industrial, DIY, and high-power applications. It operates within a wide voltage range up to 36V, delivering speeds up to 9000 RPM with stable current consumption. The motor features a ball bearing front shaft and copper rear support for improved durability and reduced noise. Built with 5 winding groups, it ensures reliable torque output and efficient operation. Suitable for drills, cutting machines, robotics, and automation systems.

• High-speed operation up to 9000 RPM

• Wide voltage range from 12V to 36V

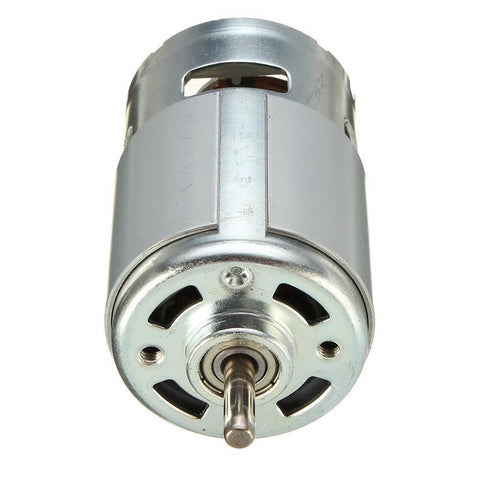

• Ball bearing front shaft for smooth rotation

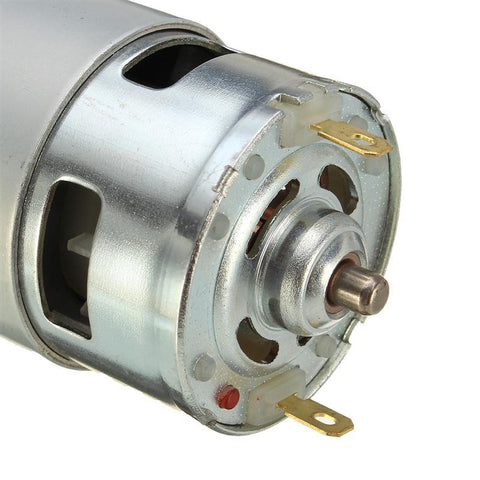

• Copper rear support for durability
• 5 winding groups for stable torque output

• Low noise operation design

• High torque at 12V–24V range
• Built-in cooling fan for heat dissipation

• Robust metal body construction

• Dual mounting holes for secure installation

• M4 mounting compatibility

• Energy-efficient current consumption

• Suitable for continuous operation

• Compatible with various mechanical systems

• Rated Voltage: 24V DC (Max 36V)

• Operating Voltage Range: 12V – 36V DC

• Current Consumption: 0.14A – 0.20A

• Rated Speed: 3500 – 9000 RPM

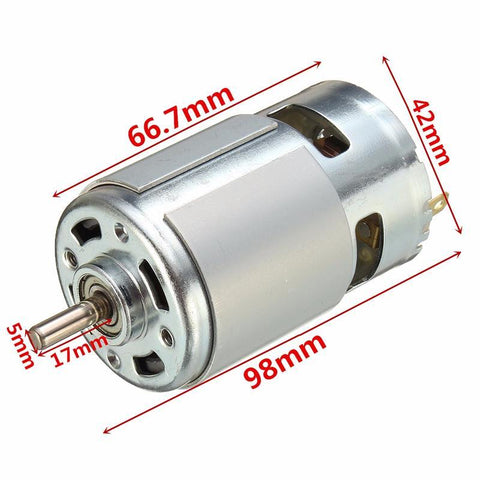

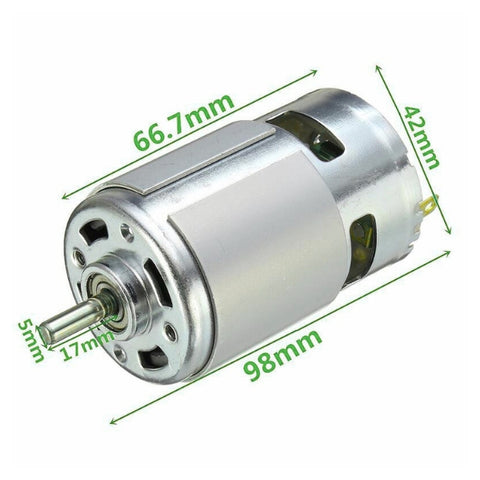

• Shaft Diameter: 5 mm

• Shaft Length: 17 mm

• Body Diameter: 42 mm

• Body Length: 66.7 mm

• Motor Total Length: 98 mm

• Mounting Hole Size: M4

• Mounting Hole Count: 2

• Cooling Method: Built-in fan

• Bearing Type: Front ball bearing, rear copper bushing

• Installation Pitch: 28.8 mm
