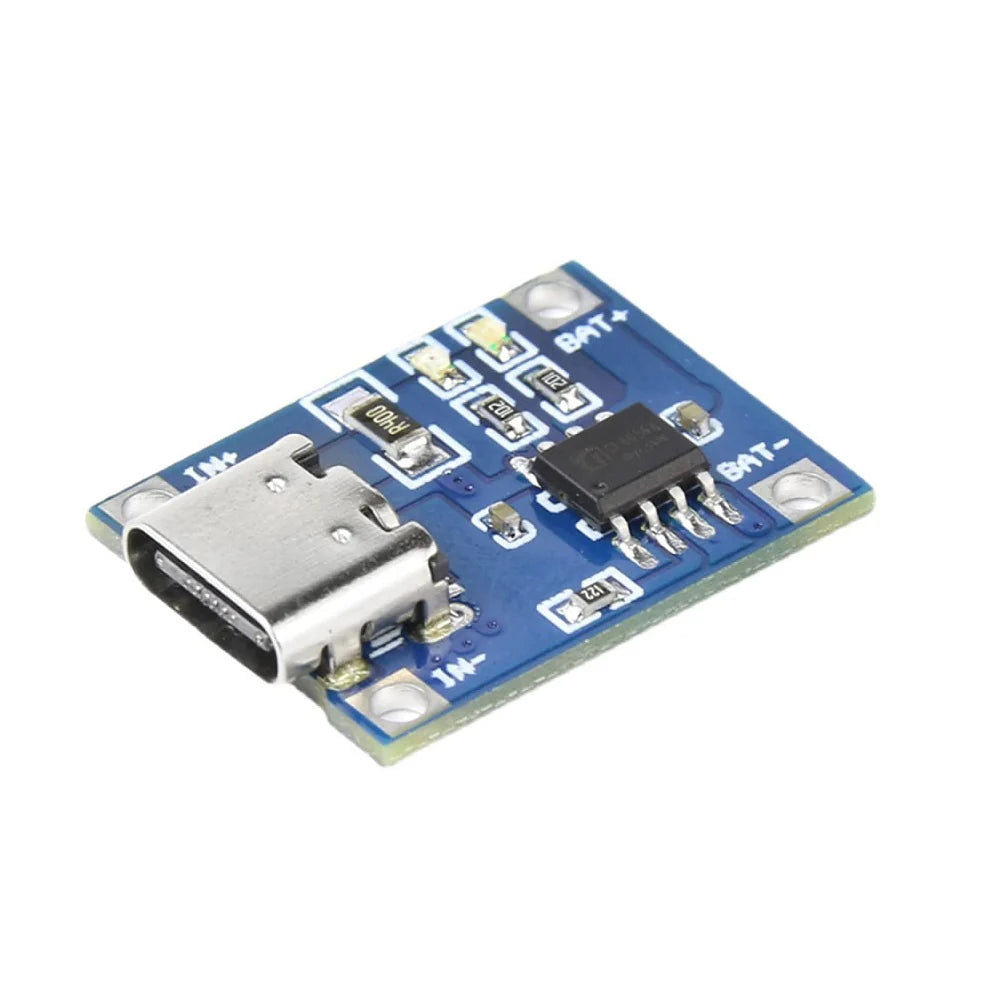

TP4056 Type-C Li-ion Battery Charging Module – 1A Charger

The TP4056 Type-C Li-ion Battery Charging Module is a compact charging solution designed for single-cell 3.7V lithium-ion and lithium-polymer batteries. Based on the TP4056 charging IC, it utilizes a constant-current/constant-voltage (CC/CV) charging algorithm to ensure safe and efficient battery charging. The module features a USB Type-C input, onboard charging status indicators, and a default charging current of approximately 1A, which can be adjusted through an onboard resistor. Available in versions with battery protection circuitry, it is suitable for portable electronics, DIY battery packs, IoT devices, and rechargeable embedded systems.

• TP4056 linear charging controller IC

• USB Type-C power input interface

• Designed for single-cell 3.7V Li-ion batteries

• Compatible with LiPo rechargeable batteries

• Constant-current/constant-voltage charging algorithm

• Default 1A charging current

• Adjustable charging current via programming resistor

• Precision 4.2V charge termination voltage

• Red LED charging status indicator

• Blue LED charge-complete indicator

• Optional battery protection circuitry

• Overcharge protection support

• Over-discharge protection support

• Short-circuit protection support

• Compact and easy-to-integrate PCB design

• Input Voltage: 4.5V – 5.5V DC

• Input Interface: USB Type-C or IN+ / IN− Pads

• Charging IC: TP4056

• Charging Method: Constant Current / Constant Voltage (CC/CV)

• Charging Current: 1A Default (Adjustable)

• Supported Battery Type: Single-Cell 3.7V Li-ion / LiPo

• Battery Voltage Range: 2.9V – 4.2V

• Charge Cut-off Voltage: 4.2V ±1%

• Charge Accuracy: ±1%

• Charge Status Indicator: Red LED (Charging)

• Charge Complete Indicator: Blue LED (Fully Charged)

• Protection Features: Overcharge, Over-Discharge, and Short-Circuit Protection (Protected Version)

• Operating Temperature: -10°C to 85°C

• Mounting Type: PCB Module

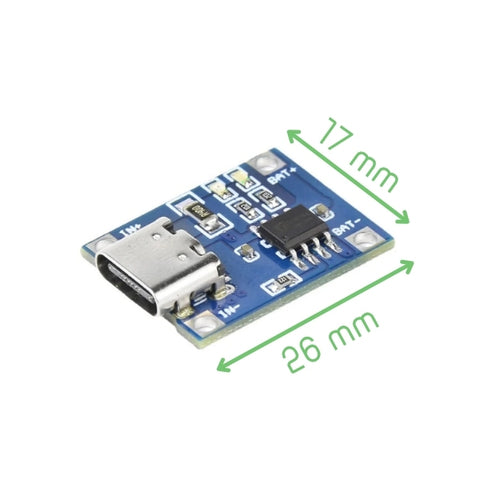

• Module Dimensions: Approximately 26mm × 17mm × 4mm

• 3.7V Li-ion 18650 Battery Charger Module - TP4056 | Micro USB Interface | POWER GEN
