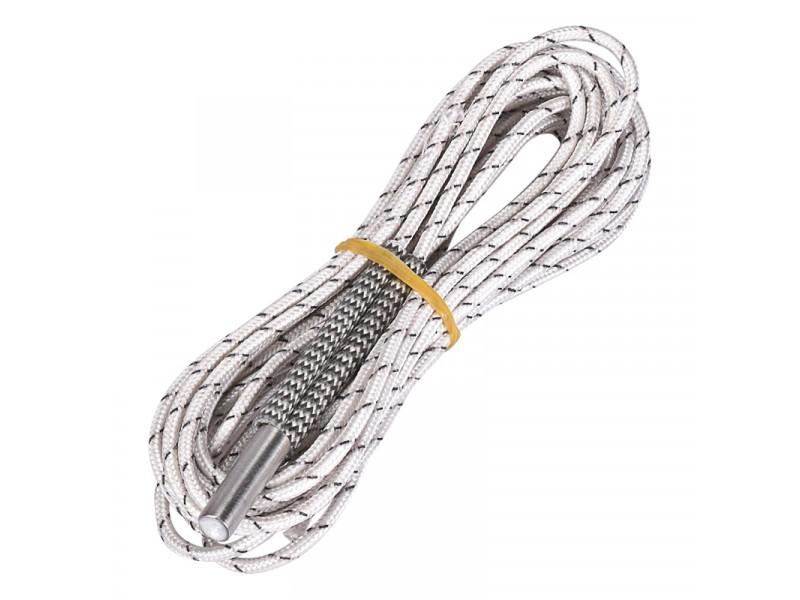

Heating tubes are the main heating source for V6 J-HEAD Hot end.
The improvement compared to ordinary red heater
1. From the original ordinary 0.3-line high-temperature line to 0.6-line thick white high-temperature line, can bear higher temperature, and looks more beautiful.
2. From the original 40W power to 50W, therefore, the maximum temperature increases from 300-31℃ to 340-350℃ or so.
3. The new version heater used in all imported skills, the use of 304 stainless steel, with the internal use of 2080 nickel chrome wire to achieve maximum service life.
4. Can be used with the new HT-NTC100K temperature thermistor (Temperature measurement can be up to 350 degrees).
Heating head size: 6 * 20mm
Heating head material: 304 stainless steel
Line length: 2M
Line thick: 0.5 mm⊃2; (The cross section of the copper wire inside the heater is 0.5mm⊃2;)
Heating temperature: up to 350 degrees
