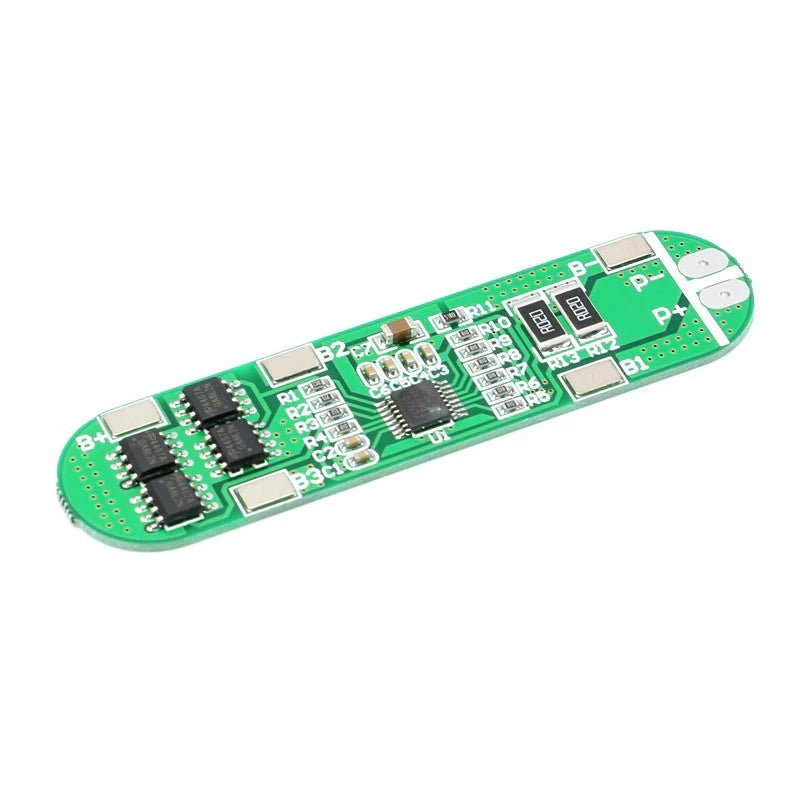

4S 12A 14.8V 18650 Li-ion Battery Protection Board (BMS)

  • Sale
  • Regular price 16 QAR
  • Product ID: VT-1210
    15 in stock


    Add an extra layer of protection to the charging and discharging mechanism of the 18650 Batteries in your project.

    • Model: HX-4S-A01
    • Overcharge Voltage Range: 4.25~4.35V
    • Over-Discharge Voltage Range: 2.3~3.0V±0.05V
    • Upper Limit Working Current: 6~8A
    • Upper Limit Instantaneous Current: 12A
    • Quiescent Current: Less Than 30μA
    • Internal Resistance: Less Than 100mΩ
    • Charging Voltage: 16.8~17V
    • Working Temperature: -40 ° C ~ 50 ° C
    • Short Circuit Protection: Protection, Charge Recovery
