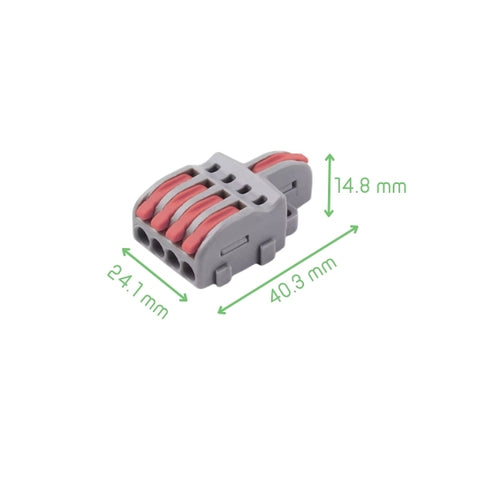

4-Way Fast Wire Splitter – 1 Input 4 Output Connector

The 4-Way Fast Wire Splitter is a compact wire connection terminal designed for quick and reliable low-voltage wiring applications. It features a lever-lock mechanism that allows fast wire installation without screws or soldering. The splitter supports 28–12AWG wires and is rated for up to 450V and 32A operation. Built with durable insulated housing and strong clamping levers, it provides stable electrical connections for prototyping, LED wiring, robotics, and DC power distribution projects. Ideal for makers, engineers, and educational electronics applications.

• 1 input and 4 output wire connections

• Lever-lock mechanism for tool-free installation

• Compatible with 28–12AWG wires

• Supports 0.08mm² to 4mm² wire sizes

• Rated for up to 450V operation

• Maximum current rating of 32A

• Secure spring clamping structure

• Reusable connector design

• Compact insulated housing construction

• Suitable for solid and stranded wires

• Fast wire insertion and removal

• Stable low-voltage electrical connection

• No screws or soldering required

• Connector Type: Fast Wire Lever Splitter

• Input Connections: 1

• Output Connections: 4

• Wiring Range: 28–12AWG

• Supported Wire Size: 0.08mm² – 4mm²

• Rated Voltage: 450V

• Rated Current: 32A

• Connection Method: Lever Clamp

• Housing Material: Flame Retardant Plastic

• Conductor Material: Copper Alloy

• Wire Compatibility: Solid and Stranded Wires

• Reusable: Yes

• Installation Method: Tool-Free

• Recommended Application: Low Voltage Projects

• Mounting Type: Inline Connector
