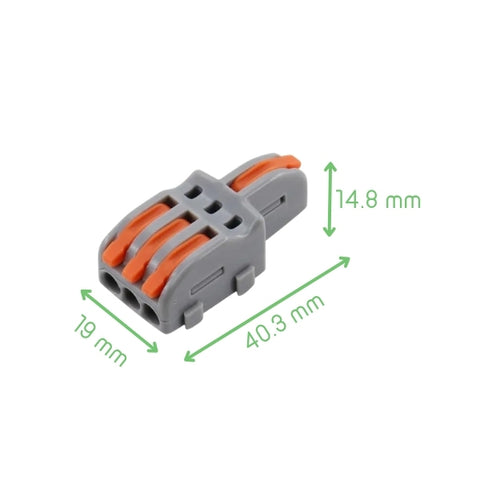

3-Way Fast Wire Splitter – 1 Input 3 Output Lever Connector

The 3-Way Fast Wire Splitter is a compact lever-operated wire connector designed for quick and secure low-voltage wire distribution. It features one input and three output terminals, making it suitable for power, ground, and signal branching in electronic and prototyping projects. The snap-lock lever mechanism supports fast installation without screws or soldering while maintaining reliable wire retention. Compatible with 28–12AWG wires, it supports a wide range of stranded and solid conductors for prototyping, automation, and embedded system applications.

• Lever-lock wire connection system

• 1 input and 3 output terminals

• Supports 28–12AWG wires

• Compatible with solid and stranded wires

• Tool-free wire installation

• Reusable connector design

• Rated up to 450V AC

• Supports up to 32A current

• Compact housing for tight spaces

• Fast wiring without screw terminals

• Secure wire retention mechanism

• Suitable for low-voltage electronics projects

• Flame-resistant insulated housing

• Reliable electrical contact performance

• Ideal for prototyping and DC distribution


• Connector Type: Lever Wire Splitter

• Number of Inputs: 1

• Number of Outputs: 3

• Wiring Range: 28–12AWG

• Supported Wire Size: 0.08–4mm²

• Rated Voltage: 450V AC

• Rated Current: 32A

• Connection Method: Lever Clamp

• Wire Compatibility: Solid and Stranded Wires

• Housing Material: Flame-Resistant Plastic

• Contact Material: Copper Alloy

• Reusable: Yes

• Installation Method: Tool-Free Push Connection

• Recommended Applications: Low-Voltage Projects

• Operating Environment: Indoor Dry Applications
