3.3 V Linear Voltage Regulator Module

The 3.3 V voltage regulator module provides a regulated 3.3 V output from a higher DC input source.

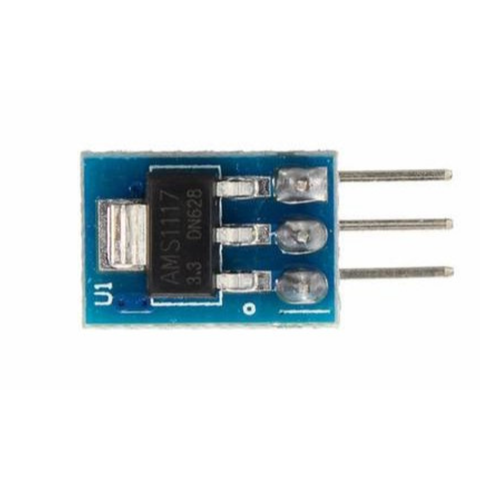

It integrates a linear regulator with supporting passive components on a compact PCB.
The module simplifies power supply design by reducing external component requirements.
It is suitable for powering low-voltage digital circuits and embedded systems.
Typical applications include microcontroller boards, sensors, logic circuits, and prototyping platforms.

• Integrated Linear Regulator providing stable 3.3 V output

• Onboard Input and Output Capacitors ensuring voltage stability

• Wide Input Voltage Support accommodating common DC sources

• Current Limiting Protection preventing overload damage

• Thermal Shutdown Protection safeguarding against overheating

• Compact PCB Form Factor suitable for embedded designs

• Device Type | Linear Voltage Regulator Module

• Output Voltage | 3.3 V

• Maximum Output Current | 0.8 A

• Input Voltage Range | 4.5 V to 12 V

• Regulation Type | Linear

• Output Voltage Accuracy | ±2 %

• Protection Features | Current Limit, Thermal Shutdown

• Operating Temperature Range | −40 °C to 85 °C

• Mounting Type | Through-Hole Pin Header

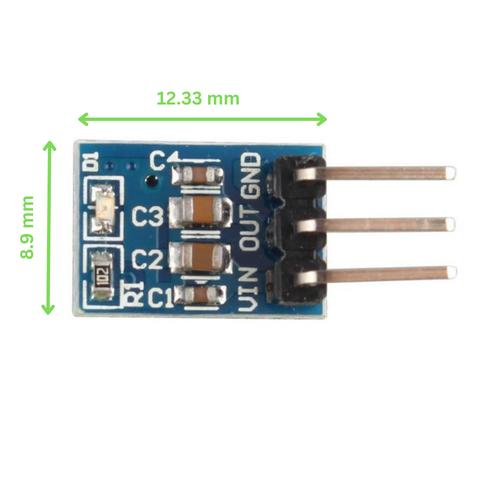

• Module Dimensions | 12.33 mm × 8.9 mm
