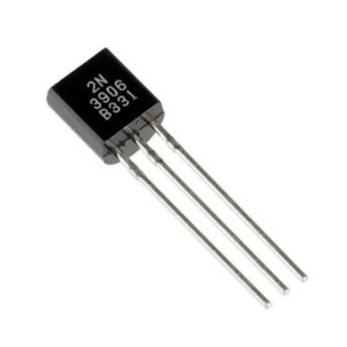

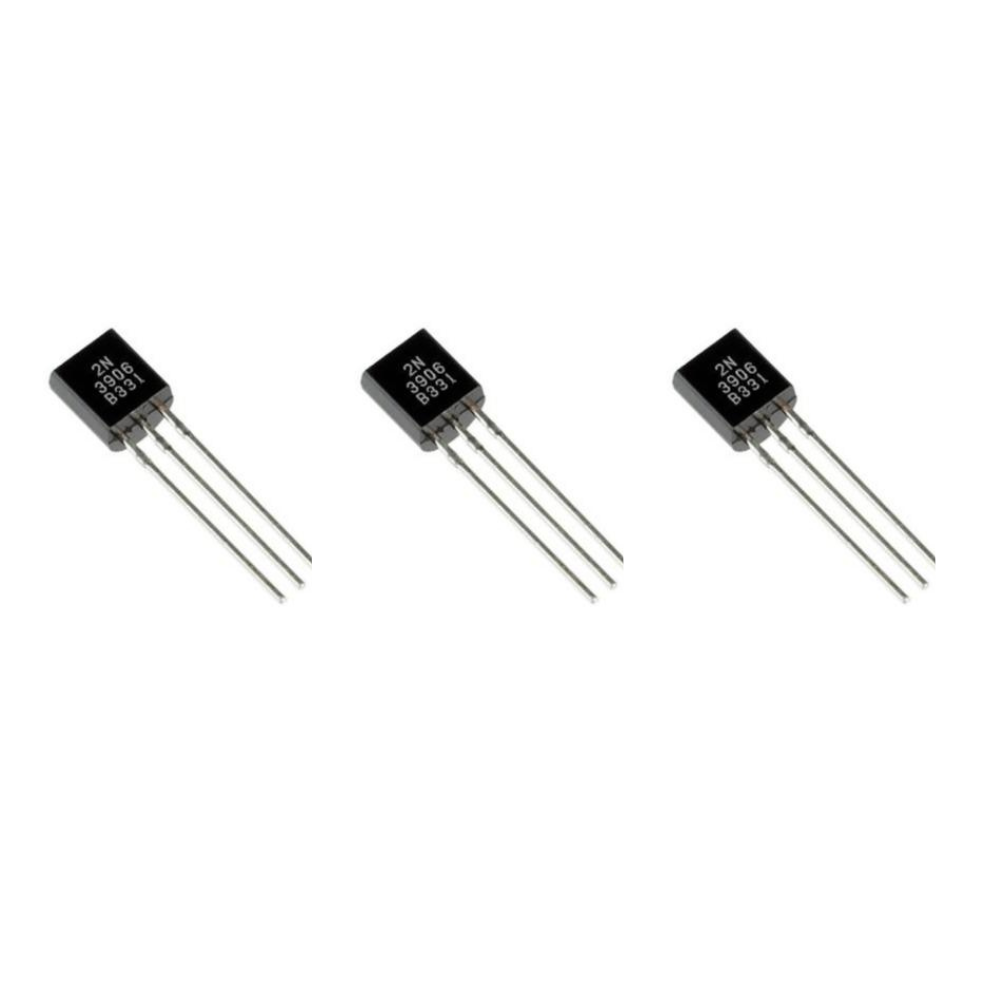

2N3906 PNP Transistor – 3 Pieces

  • Sale
  • 1 QAR
Product ID: VT-2036
30+ in stock

The 2N3906 is a general-purpose PNP bipolar junction transistor designed for low-power switching and amplification applications. It supports a maximum collector-emitter voltage of 40 V and a continuous collector current of 200 mA, making it suitable for signal conditioning and control circuits. Typical uses include complementary amplifier stages, low-current drivers, and logic-level switching. The device is optimized for through-hole PCB mounting and maintains stable electrical performance across an operating temperature range of –55 °C to +150 °C.

  • Transistor Type: PNP bipolar junction

  • Collector Current: 200 mA maximum

  • Collector-Emitter Voltage: 40 V

  • DC Current Gain: Controlled gain for signal applications

  • Power Dissipation: 625 mW

  • Transition Frequency: Suitable for small-signal operation

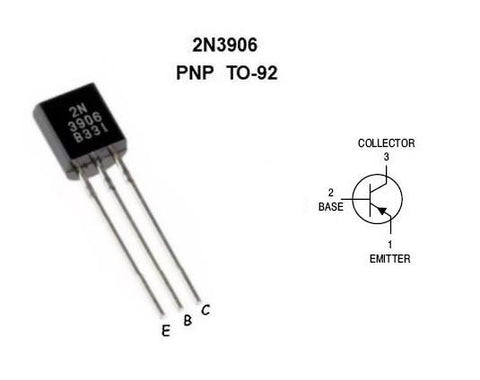

  • Package: TO-92 through-hole

Electrical:

  • Collector-Emitter Voltage | 40 V

  • Collector-Base Voltage | 40 V

  • Emitter-Base Voltage | 5 V

  • Collector Current | 200 mA

  • Power Dissipation | 625 mW

  • DC Current Gain (hFE) | 100–300

Performance:

  • Transition Frequency (fT) | 250 MHz

  • Saturation Voltage VCE(sat) | 0.4 V max

Mechanical:

  • Package | TO-92 through-hole

  • Mounting Type | PCB

  • Operating Temperature | –55 °C to +150 °C
