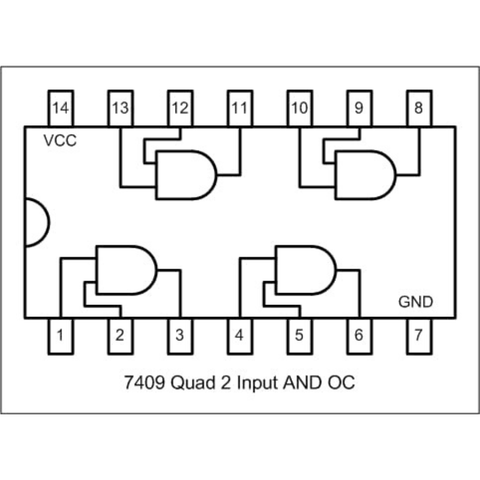

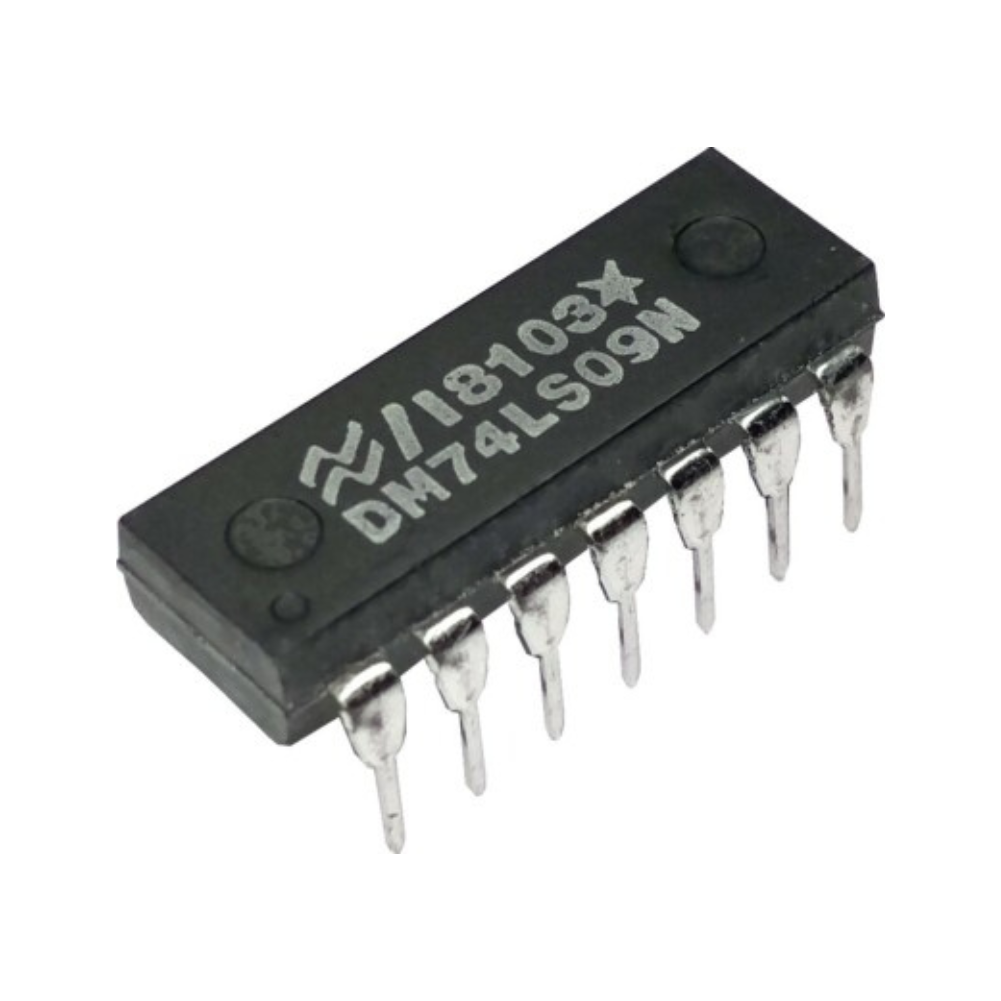

7409 Quad 2-Input AND Gate Logic IC (Open-Collector) – DIP-14

The 7409 is a TTL logic integrated circuit containing four independent 2-input AND gates with open-collector outputs in a single package. It performs standard AND logic functions while providing flexible output interfacing through external pull-up resistors. The open-collector design allows wired-AND connections, direct interfacing with higher-voltage circuits, and driving external loads such as LEDs or relays. Operating from a standard 5V TTL supply, the 7409 is commonly used in logic control, signal gating, level shifting, and digital interface applications.

• Quad 2-input AND gate configuration
• Four independent logic gates
• Open-collector outputs for flexible interfacing
• Supports wired-AND logic connections
• External pull-up resistor compatibility
• Standard TTL logic compatibility
• Single 5V supply operation
• Suitable for higher-voltage interfacing
• Can drive indicator loads and control circuits
• Reliable TTL switching performance
• DIP-14 through-hole package
• Breadboard-friendly design
• Easy PCB integration
• Ideal for digital logic applications

• Model: 7409
• Device Type: Quad 2-Input AND Gate IC
• Output Type: Open-Collector
• Logic Family: TTL
• Number of Gates: 4
• Inputs per Gate: 2
• Supply Voltage: 5V
• Propagation Delay (Typical): 15ns
• Maximum Output Sink Current: 16mA
• Power Consumption (Typical): 40mW
• Package Type: 14-Pin DIP
• Mounting Type: Through-Hole
• Operating Temperature Range: 0°C to +70°C
• Application Type: Logic Control and Signal Gating
