Voltaat 15.6 Inch 1920x1080 IPS Type-C Touch Screen

15.6 Inch 1920x1080 IPS Type-C Touch Screen

Sale
Regular price 589 QAR

Product ID: VT-4748

4 in stock

Description
Features
Specification
Reviews
Questions & Answers

Description

Featuring a 15.6-inch capacitive touch display, this product stands out with its high resolution of 1920x1080, full-function Type-C and HDMI dual display interfaces, IPS hard screen technology, optical bonding, and support for ten-point capacitive touch. It exhibits extensive compatibility, capable of connecting with single-board computers such as the LattePanda series, Raspberry Pi 4B, Jetson Nano, as well as various desktop computers, laptop computers, mini PCs, industrial computers, and tablet computers. It is suitable for use in human-machine interaction scenarios, such as terminal device control panels, IoT control panels, and more.

Features

Supports ten-point capacitive touchSupports dual-channel audio outputSupports both Type-C and HDMI video transmission methodsThe full-featured Type-C interface allows single-line connection for video, audio, and touch signals, and supports reverse PD power delivery.Type-C does not require distinguishing between power and data interfaces, supporting blind insertion.Compatible with Raspberry Pi 4B, LattePanda, LattePanda Alpha/Delta, and LattePanda Delta 3 installations.Compatible with various desktop computers, laptops, mini PCs, industrial computers, and tablets

Specification

Screen parameters

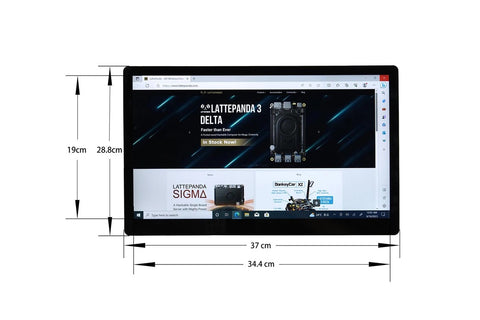

LCD size: 15.6 inchesResolution: 1920×1080Pixel pitch (um): 179.25(H) × 179.25(V)Pixel arrangement : RGB Vertical StripeColor gamut: 45%Display colors: 262k (6-bit)Active area(mm): 344.16(H)×193.59(V)Surface treatment: Anti-GlareSurface hardness: 3HBrightness: 250cd/㎡Refresh rate: 60HzTransmittance: ≥86%View angle: Full-view angleNumber of touch: 10Touch panel hardness: ≥6HBonding method: Optical bondingOutline dimension(mm): 369.5(H)×288.6(V)×5.2(D)Interface: eDPLCD brand: BOEOperating temperature: 0~+50℃Weight: 766g

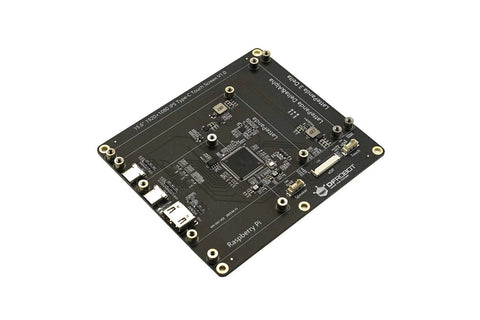

Display driver board parameters

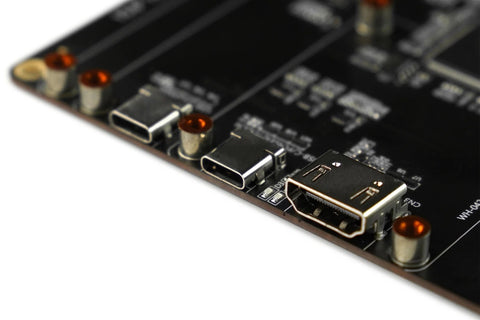

Display interface: Type-C/HDMISpeaker interface: MX1.25-4PTouch interface: Type-CPower interface: Type-CPower voltage: PD3.0, 5~20VMounting hole size: Hole diameter 3.0mmPCB size(mm): 125(V)×110(H)×1.6(D)

Touch control board parameters

Touch chip: ILI2511Touch interface: MX1.25-4PMounting hole size: Hole diameter 3.0mmPCB size(mm): 50(H)×26(V)×4.8(D)
