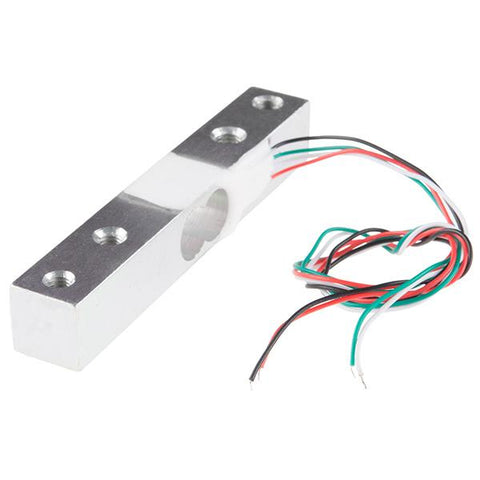

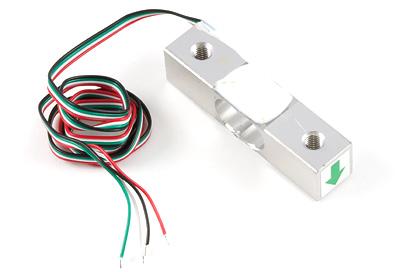

This straight bar load cell (sometimes called a strain gauge) can translate up to 1kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. Each straight bar load cell is made from an aluminum-alloy and is capable of reading a capacity of 1kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. The color code on the wiring is as follows: red = power+, green = signal+, black = power-, and white = signal-.
- Rated Load: 1Kg
- Rated Output: 1.0mV/V±0.15mV/V
- Zero Output: ±0.1mV/V
- Creep: 0.03%F.S./30min
- Input End: Red+ (power), Black-(power)
- Output End: Green+(signal), White-(signal)
- Recommended operating voltage: 3 ~ 12 VDC
- Maximum operating voltage: 15 VDC
- Input Impedance: 1115±10%Ω
- Output Impedance: 1000±10%Ω
- Material: Aluminum Alloy
