2Amp 7V-30V L298N Motor Driver / Stepper Driver (2 Channels)

  • Sale
  • Regular price 23 QAR
  • Product ID: VT-2702
    26 in stock

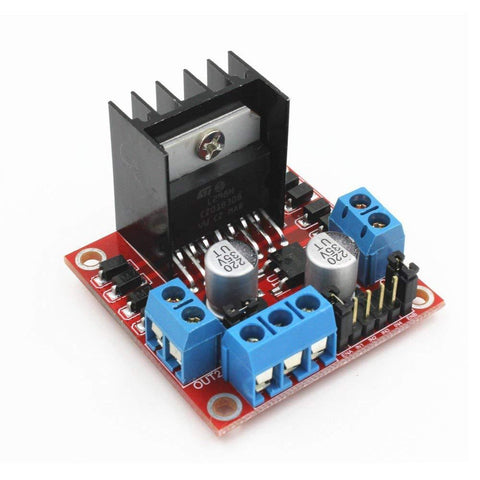

    This module is capable of driving inductive loads such as relays, solenoids, DC and stepping motors. The module is based on the L298 chip; which is a high voltage, high current, dual full-bridge motor driver designed to accept standard TTL logic levels. The L298 Stepper Controller makes it easy to drive either two DC motors or a bipolar stepper motor.

    • Chip: L298N
    • Compatible with L297/L298 driver
    • Double H bridge drive
    • Drive current: 2A(MAX single bridge)
    • Maximum power: 25W
    • Drive voltage: 5V-35V
    • Logical voltage: 5V
    • Logic current: 0-36mA
    • Compatible with L297/L298 driver
