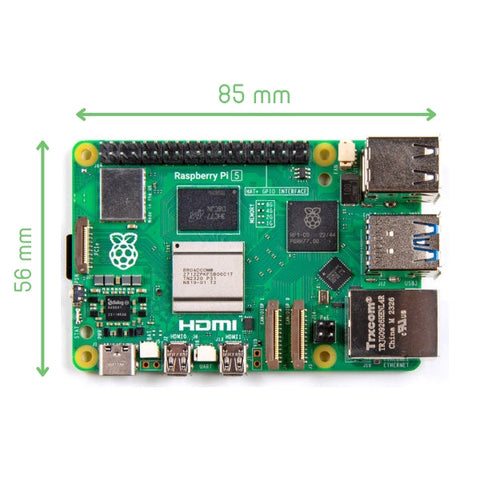

Raspberry Pi 5 Single Board Computer – Quad Core ARM Processor

The Raspberry Pi 5 Single Board Computer is a next-generation platform designed for advanced desktop, embedded, and industrial applications. It features a 64-bit quad-core Arm Cortex-A76 processor running at 2.4 GHz, delivering a 2–3× CPU performance increase compared to Raspberry Pi 4. Graphics performance is enhanced by an 800 MHz VideoCore VII GPU, with support for dual 4Kp60 HDMI display output and a redesigned Image Signal Processor for modern camera systems. Built around the in-house RP1 I/O controller, it offers higher USB throughput, high-speed MIPI interfaces, SDR104 SD card support, and a PCI Express 2.0 interface. It is suitable for engineering development, industrial systems, and high-performance educational computing.

• 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
• cryptography extensions
• 512KB per-core L2 caches
• 2MB shared L3 cache
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM - 4GB
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button

• CPU Architecture: Quad-core 64-bit Arm Cortex-A76, 2.4 GHz
• CPU Extensions: Hardware cryptography extensions
• L2 Cache: 512 KB per core
• L3 Cache: 2 MB shared
• Graphics API Support: OpenGL ES 3.1, Vulkan 1.2
• Video Decoder: 4Kp60 HEVC
• Display Features: Dual HDMI with HDR support
• System Memory: LPDDR4X-4267 SDRAM, 4 GB
• Wireless Connectivity: Dual-band 802.11ac Wi-Fi
• Bluetooth: Bluetooth 5.0, Bluetooth Low Energy
• Ethernet: Gigabit Ethernet with PoE+ support
• Power Input: 5 V DC, 5 A via USB Type-C
• GPIO Header: 40-pin Raspberry Pi standard header
• Real-Time Clock: Onboard RTC with external battery support
• User Interface: Onboard power button
