Raspberry Pi High Quality Camera – M12 Lens Mount

The Raspberry Pi High Quality Camera with M12 Lens Mount is a camera module designed for Raspberry Pi systems and precision imaging applications. It is built around the 12.3MP Sony IMX477 image sensor, enabling high-resolution image capture and reliable low-light performance. The M12 lens mount supports interchangeable lenses for flexible optical configurations. Engineered for stable operation, the module integrates directly with Raspberry Pi hardware and official software libraries. It is suitable for computer vision systems, robotics, machine learning projects, and scientific imaging applications.

Checkout the different lens options we have for this camera:

• 8mm 12MP Portrait Lens for Raspberry Pi High Quality Camera - M12
• 2.7mm 12MP Wide Angle Lens for Raspberry Pi High Quality Camera - M12

• 5MP 25mm Telephoto Lens for Raspberry Pi High Quality Camera - M12

• Sony IMX477 12.3MP image sensor
• M12 lens mount for interchangeable lenses

• Adjustable manual focus mechanism

• Improved low-light and dynamic range performance

• CSI interface compatibility with Raspberry Pi boards

• Aluminum lens mount construction

• Support for computer vision and machine learning projects

• Image Sensor: Sony IMX477 CMOS

• Sensor Resolution: 12.3 megapixel

• Lens Mount: M12 lens mount

• Focus Type: Manual focus

• Output Interface: CSI-2 serial interface

• Operating Voltage: 5V DC

• Housing Material: Aluminum

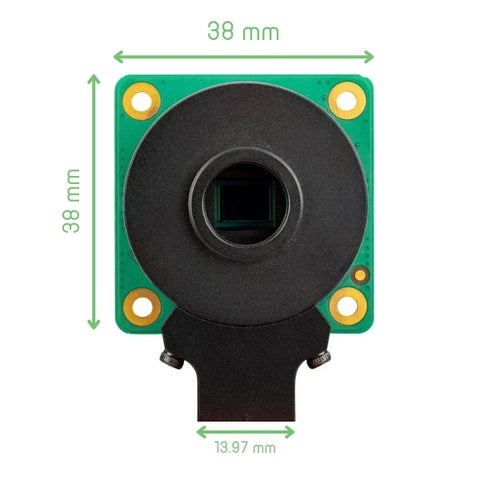

• Dimensions: 38 × 38 × 19.8 mm

• Weight: 38 g

• Operating Temperature: 0 to 50 °C

• Supported Platforms: Raspberry Pi boards with CSI connector

• Raspberry Pi HQ Camera core (M12 mount) equipped with a 2.72mm lens 3D Model

• Raspberry Pi High Quality Camera M12, 12.3MP IMX477R Sensor, Supports M12 mount Lenses
