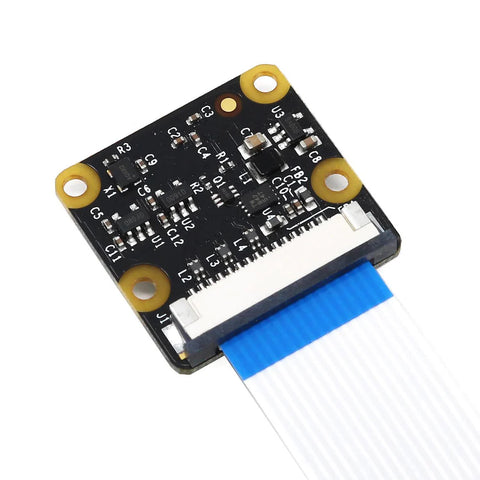

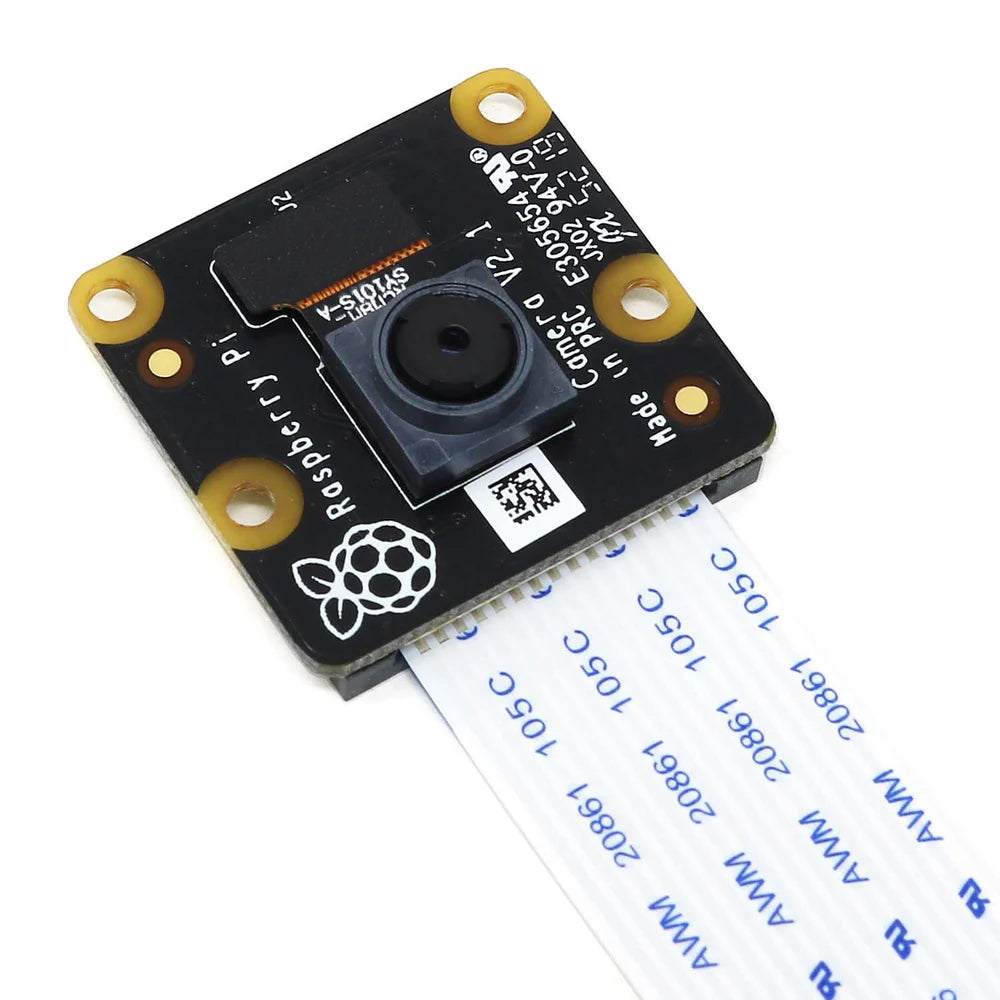

Raspberry Pi Camera Module V2 NOIR – 8MP Infrared Camera

The Raspberry Pi Camera Module V2 NOIR is an 8 MP camera designed for Raspberry Pi boards requiring imaging in low-light and infrared conditions. It uses the Sony IMX219 sensor and omits the infrared cut filter to enable near-infrared sensitivity. The module delivers stable image capture with a fixed-focus lens and full compatibility with the Raspberry Pi CSI interface. Its reliable construction supports continuous operation in embedded systems and research setups. It is suitable for night vision projects, computer vision development, surveillance prototypes, and educational imaging applications.

• Fixed focus lens on-board
• 8 megapixel native resolution sensor capable of 3280 x 2464 pixel static images
• Supports 1080p30, 720p60 and 640x480p90 video
• Size 25mm x 23mm x 9mm
• Weight just over 3g

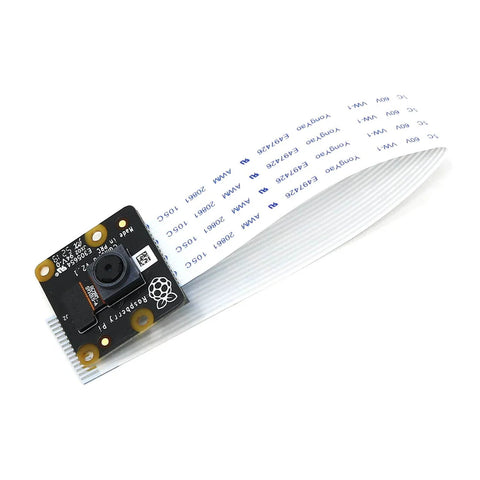

• Connects to the Raspberry Pi board via a short ribbon cable (supplied)
• Camera v2 is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system

• Sensor Type : Sony IMX219 CMOS
• Resolution : 8 MP (3280 × 2464)
• Sensor Size : 1/4 inch
• Pixel Size : 1.12 µm × 1.12 µm
• Lens Type : Fixed focus
• Infrared Filter : None (NOIR)
• Interface : MIPI CSI-2
• Operating Voltage : 3.3 V DC (via CSI interface)
• Dimensions : 25 × 24 mm
• Weight : 3 g
• Operating Temperature : 0 to 50 °C
• Compatibility : Raspberry Pi boards with CSI camera connector
