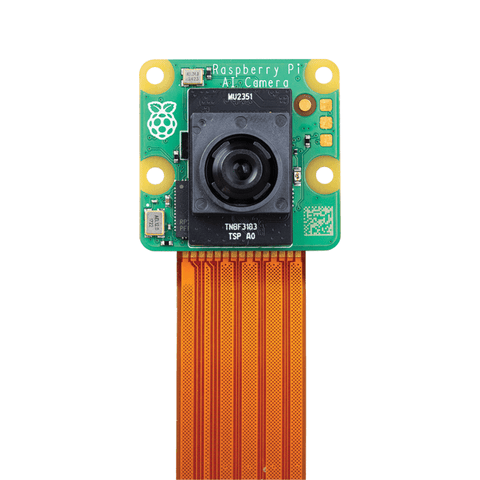

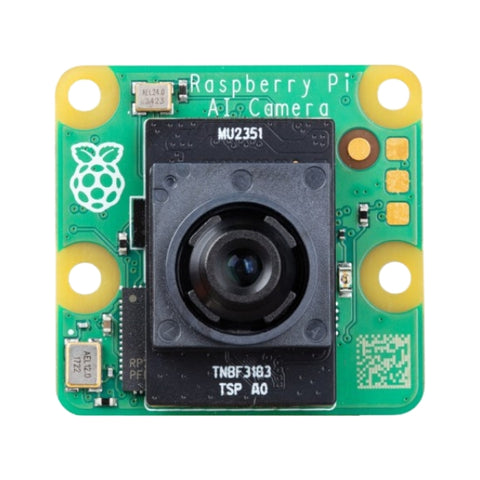

Raspberry Pi AI Camera – IMX500 12MP Intelligent Vision Sensor

The Raspberry Pi AI Camera is an intelligent camera module designed for embedded AI vision applications. It is based on the Sony IMX500 12MP intelligent vision sensor, which integrates on-sensor AI inferencing to reduce system load and latency. The module includes a preloaded MobileNet model for object detection and classification tasks. It features a wide 76° field of view with a manually adjustable focus lens for flexible imaging scenarios. Supplied FPC cables enable direct compatibility with Raspberry Pi boards, supporting rapid integration in vision, automation, and educational AI projects.

• Sony IMX500 intelligent vision sensor

• 12MP CMOS image sensor resolution

• On-sensor AI inference accelerator

• Preloaded MobileNet vision model

• 76° field of view lens

• Manually adjustable focus lens

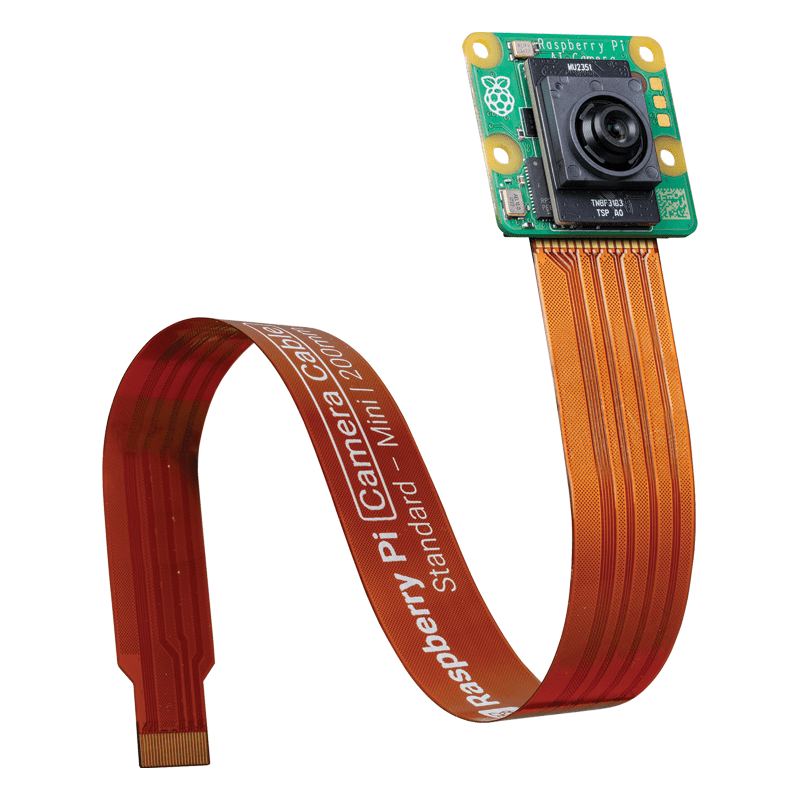

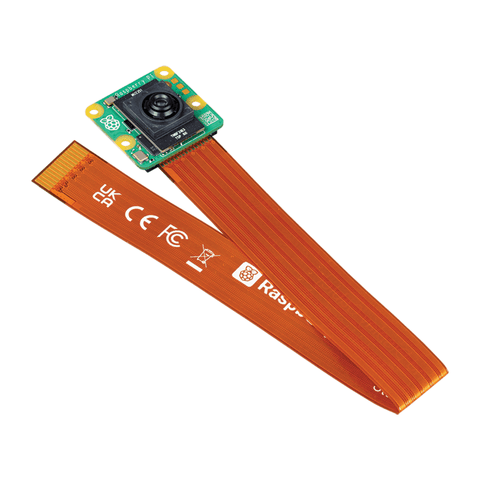

• FPC connectivity with 15-way and 22-way cables

• Compatibility with Raspberry Pi computers


• Image Sensor: Sony IMX500 intelligent vision sensor

• Sensor Resolution: 12.3 megapixels

• Sensor Size: 7.857 mm (1/2.3 type)

• Pixel Size: 1.55 µm × 1.55 µm

• Active Pixels: 4056 × 3040 pixels

• IR Cut Filter: Integrated

• Autofocus System: Manual adjustable focus

• Focus Range: 200 mm to infinity

• Focal Length: 4.74 mm

• Horizontal Field of View: 66° ±3°

• Vertical Field of View: 52.3° ±3°

• Focal Ratio: F1.79

• Infrared Sensitivity: No

• Output Formats: Bayer RAW10, YUV, RGB, ROI, metadata

• Maximum Input Tensor Size: 640 × 640

• Input Data Type: int8 or uint8

• Memory Size: 8388480 bytes

• Frame Rate (Binned): 2028 × 1520, 10-bit, 30 fps

• Frame Rate (Full Resolution): 4056 × 3040, 10-bit, 10 fps

• Ribbon Cable Length: 200 mm

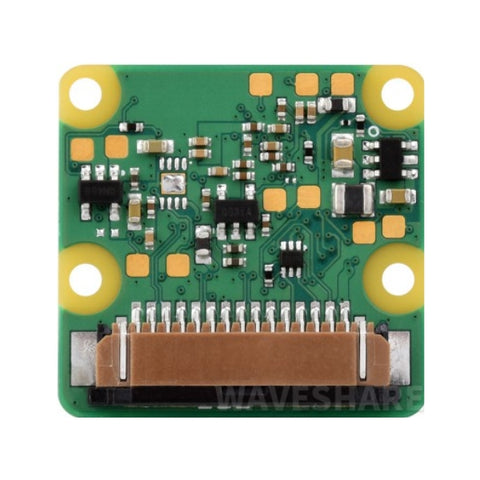

• Cable Connector: 15 × 1 mm FPC or 22 × 0.5 mm FPC

• Operating Temperature: 0 °C to 50 °C

• Compliance: Regional certifications listed on pip.raspberrypi.com

• Production Lifetime: In production until at least January 2028

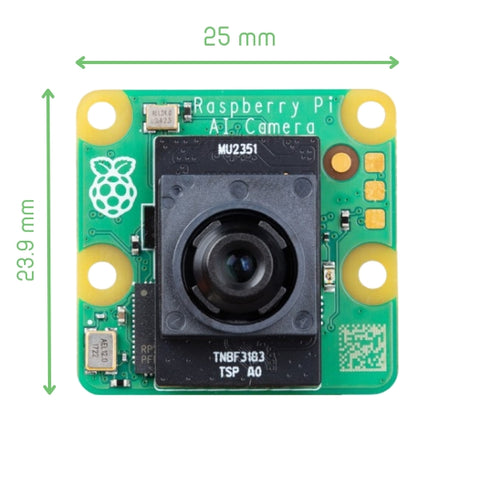

• Dimensions: 25 × 24 × 11.9 mm
