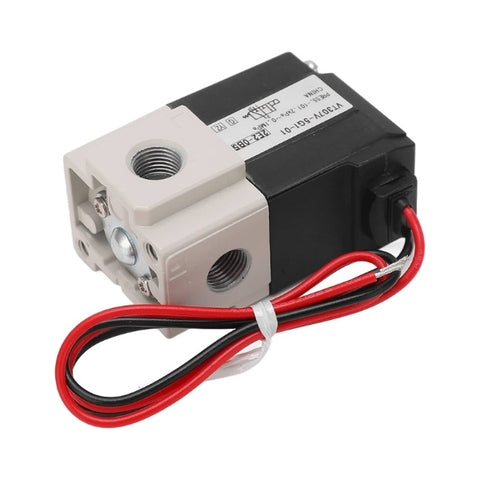

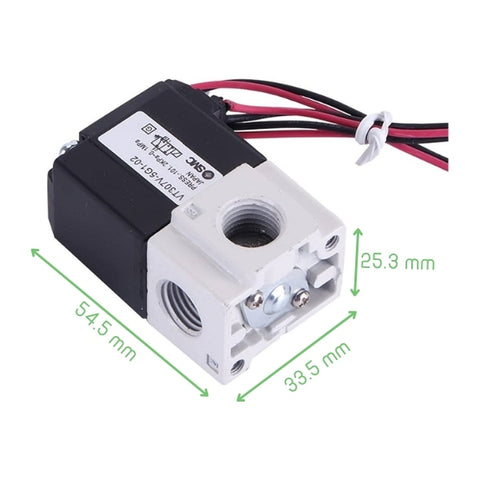

12V DC Pneumatic Solenoid Valve – 3 Port Normally Closed 0–0.7 MPa

This pneumatic solenoid valve is designed to control the flow of compressed air, gases, and compatible liquids in automated systems. It operates on a 12V DC supply and features a 3-port, 2-position normally closed configuration with a linear motion poppet mechanism. Built for stable performance, it supports pressures up to 0.7 MPa and provides reliable switching through a spring return (self-recovery) design. The valve includes 6 mm threaded ports and M4 mounting holes for secure installation. It is suitable for industrial automation, pneumatic control circuits, and fluid management applications.

• 3-port 2-position valve configuration

• Normally closed operation with spring return

• 12V DC coil for standard control systems

• Linear motion poppet actuation mechanism

• Operating pressure range up to 0.7 MPa

• Compatible with air, gases, and non-flammable liquids

• Soft seal design for improved sealing performance

• Internal pilot air supply system

• Compact metal body construction

• 6 mm threaded ports for secure connections

• Dual M4 mounting holes for stable installation
• Low current consumption design

• Lubrication-free operation option available

• Ozone-compatible material variant support

• Mounting Orientation: Direct
• Voltage: DC12V
• Specification: Standard / Ozone Compatible / Lubrication Free / Low Current
• Valve Type: 3-Port Valve

• Actuation: [Single] Single
• Status at Power Off : Self-Recovery (Spring Return)
• Valve Position: Normally Closed
• Port Size: 6mm
• Pressure Rating(MPa): 0~0.7
• Driving Type: Linear Motion Poppet
• Pilot Air Supply: Internal
• Seal Type: Soft Seal
• Plumbing: Direct Plumbing
• Flow Coefficient (Cv): 0.18
