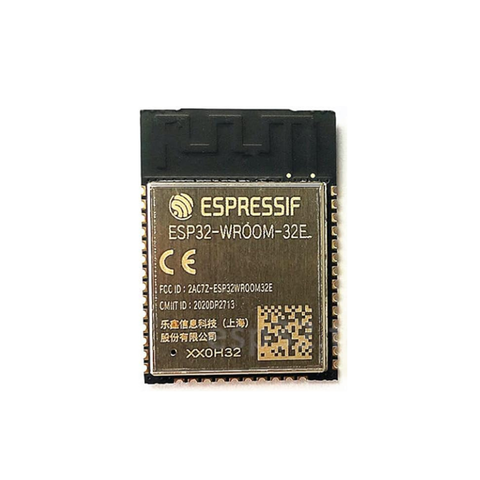

ESP32-WROOM-32E Wi-Fi & Bluetooth Module

The Espressif ESP32-WROOM-32E is a wireless MCU module based on the ESP32 dual-core processor, integrating Wi-Fi and Bluetooth connectivity for embedded systems. It includes on-module SPI flash memory and an integrated PCB antenna for compact designs. The module operates at 3.3 V and supports a wide range of digital and analog interfaces. It is compatible with Arduino IDE, ESP-IDF, and MicroPython. Typical applications include IoT devices, industrial controllers, smart sensors, and wireless embedded products.

• ESP32 MCU: Dual-core 32-bit Tensilica LX6 processor

• Wireless Connectivity: Integrated Wi-Fi 802.11 b/g/n and Bluetooth v4.2

• Flash Memory: On-module SPI flash storage

• Antenna: Integrated PCB antenna

• Interface Support: GPIO, ADC, DAC, PWM, UART, SPI, and I²C

• Operating Voltage: 3.0–3.6 V power and logic level

• Firmware Compatibility: Arduino IDE, ESP-IDF, and MicroPython

• Product Type | Function: Wireless MCU module with Wi-Fi and Bluetooth

• Processor | Core: Dual-core 32-bit Tensilica LX6

• Operating Voltage | Supply: 3.0–3.6 V DC

• Wireless Standards | Protocols: Wi-Fi 802.11 b/g/n, Bluetooth v4.2 BR/EDR and BLE

• Flash Memory | Capacity: 4 MB SPI flash

• GPIO | Count: Up to 34 GPIO pins

• Analog Interfaces | ADC/DAC: 18-channel ADC, 2-channel DAC

• Communication Interfaces | Buses: UART, SPI, I²C, PWM

• Antenna | Type: On-board PCB antenna

• Operating Temperature | Range: −40 to +85 °C

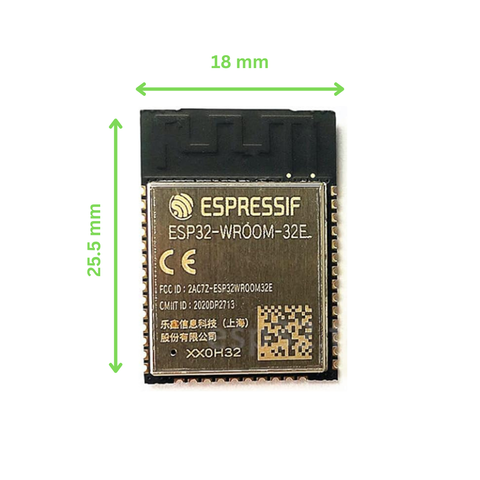

• Dimensions | Size: Approximately 25.5 × 18.0 mm
