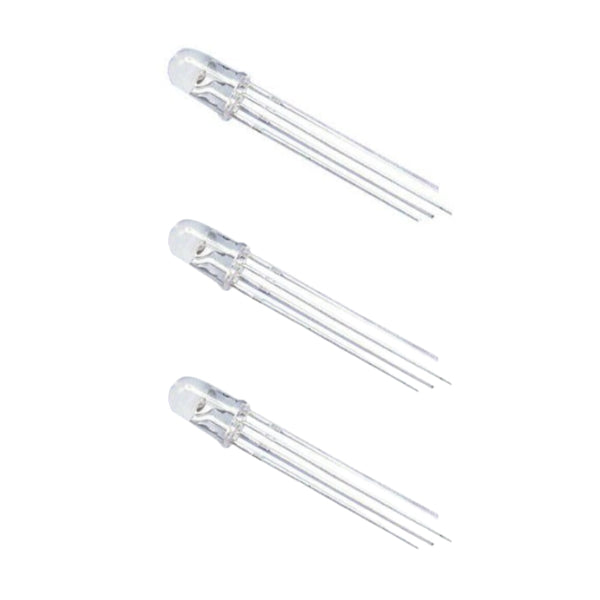

RGB LED 5mm Common Cathode – 3 Pack

The RGB LED 5mm Common Cathode is a multi-color light-emitting diode designed for visual indication and color-mixing applications. It integrates red, green, and blue LEDs into a single 4-pin package with a shared cathode for simplified control. Built for consistent brightness and stable operation, it supports PWM control for generating a wide range of colors. Suitable for embedded systems, prototyping, and educational electronics projects.

• 5mm RGB LED package with three integrated color channels

• Common cathode configuration for simplified circuit design

• Individual red, green, and blue control pins

• PWM-compatible for smooth color mixing

• Multi-color output from a single LED package

• Standard 4-pin through-hole design

• Suitable for status indication and visual feedback

• Compatible with microcontrollers (Arduino, Raspberry Pi)

• Stable light output with consistent brightness

• Long lifespan solid-state lighting technology

• Low power consumption per channel

• Easy integration into breadboards and PCBs

• LED Type: RGB LED (Red, Green, Blue)

• Package Size: 5 mm diameter

• Configuration: Common Cathode

• Number of Pins: 4 pins

• Forward Voltage (Red): 1.8–2.2 V

• Forward Voltage (Green): 2.8–3.2 V

• Forward Voltage (Blue): 2.8–3.2 V

• Forward Current: 20 mA per channel

• Viewing Angle: ~20–30°

• Mounting Type: Through-hole

• Control Method: Direct drive or PWM

• Lens Type: Clear

• Operating Temperature: -25°C to +85°C

• Quantity: 3 LEDs per pack
