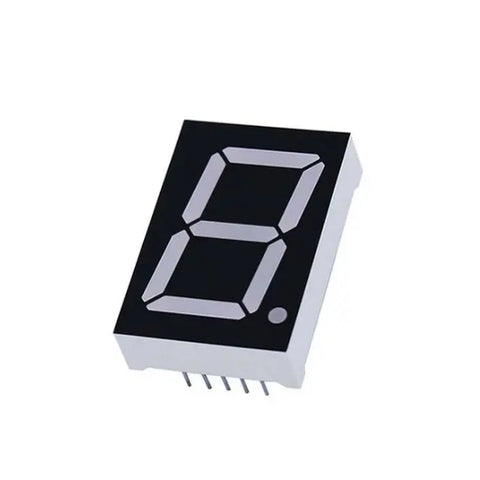

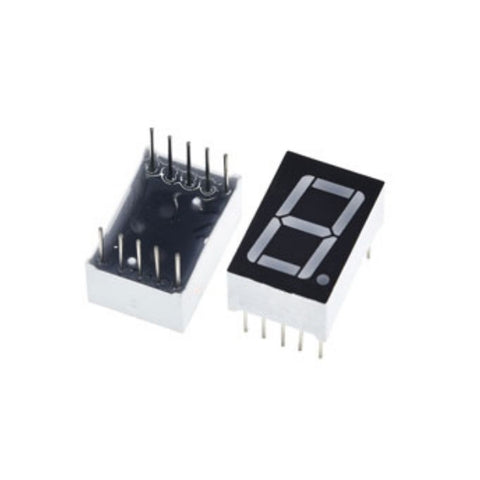

7-Segment Display – Common Anode 0.56 Inch Red LED

The 7-segment display is a compact LED module designed for displaying decimal numerals in electronic circuits and embedded systems. It features a common anode configuration with bright red LED segments and a standard 0.56 inch digit size for clear readability. Operating at low voltage, it provides stable performance and is compatible with microcontrollers such as Arduino and Raspberry Pi. The module supports precise segment control for dynamic numeric display applications. Ideal for digital clocks, counters, measurement systems, and educational electronics projects.

• Common anode configuration for multiplexed control systems

• Bright red LED segments for high visibility

• 0.56 inch digit height for standard display size

• Low forward voltage operation around 1.99 V

• Compatible with Arduino and embedded platforms

• Individual segment addressing capability

• Standard pin configuration for easy integration

• Low power consumption LED design

• Fast switching response for dynamic displays

• Durable epoxy encapsulated structure

• Suitable for multiplexing multiple digits

• Clear contrast for indoor electronic displays


• Display Type: 7-Segment LED Display

• Configuration: Common Anode

• Digit Height: 0.56 inch (14.2 mm)

• Number of Digits: 1 Digit

• LED Color: Red

• Forward Voltage: 1.8–2.2 V

• Forward Current: 10–20 mA per segment

• Power Consumption: Low power LED operation

• Viewing Angle: 30–60°

• Mounting Type: Through-hole

• Pin Count: 10 Pins

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -30°C to +80°C

• Housing Material: Epoxy resin
