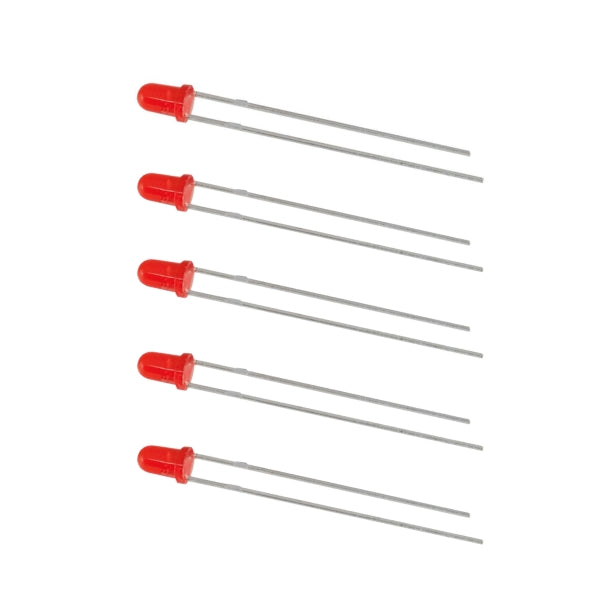

Red 3mm LED – Diffused Lens (5 Pack)

The Red 3mm LED is a compact through-hole indicator LED designed for electronic circuits, signal indication, and embedded applications. It features a diffused 3 mm lens that provides soft and evenly distributed light output for improved visibility. Operating at a forward voltage of 5V DC, the LED supports up to 20 mA forward current for stable and reliable performance. Suitable for breadboards, Arduino projects, DIY electronics, educational kits, and status indicator applications.

• 3 mm diffused red LED package

• Through-hole mounting design

• Wide-angle light distribution

• Forward voltage range of 5V DC

• Maximum forward current up to 20 mA

• Recommended operating current of 16–18 mA

• Luminous intensity of 40–100 mcd

• Suitable for status indication circuits
• Compatible with breadboards and PCBs

• Low power consumption operation

• Stable and consistent light output

• Standard two-pin LED configuration

• Suitable for Arduino and embedded systems

• Ideal for prototyping and DIY electronics

• Supplied in a 5-piece pack

• LED Type: Diffused Red Through-Hole LED

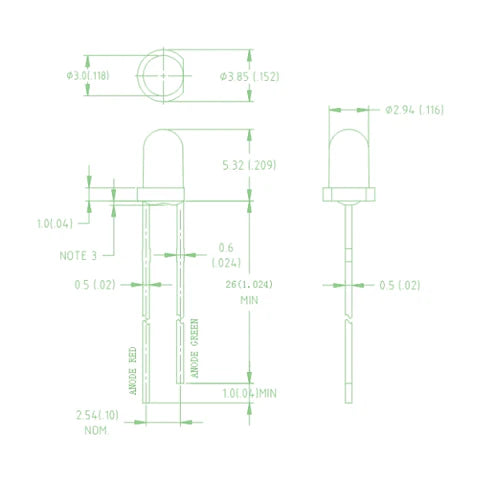

• Lens Diameter: 3 mm

• Lens Color: Red

• Mounting Type: Through-Hole

• Forward Voltage: 5V DC

• Maximum Forward Current: 20 mA
• Recommended Operating Current: 16–18 mA

• Luminous Intensity: 40–100 mcd

• Viewing Angle: Diffused Wide Angle

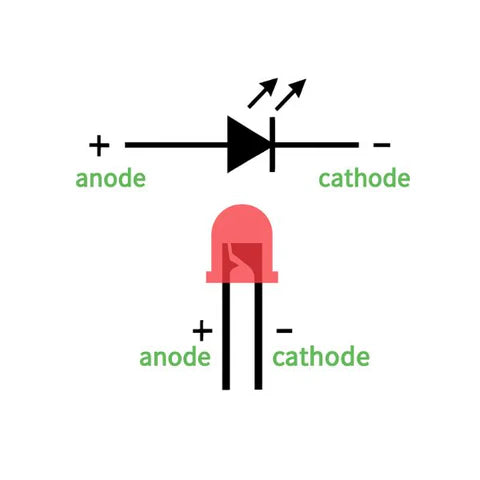

• Polarity: Anode and Cathode Leads

• Package Quantity: 5 LEDs

• Lead Material: Tin-Plated Copper

• Operating Temperature: -25°C to 85°C

• Compatibility: Breadboards, PCBs, Arduino, Raspberry Pi
