Flexible RGB LED Matrix 8×32 – WS2812B Addressable 5V Panel

The Flexible RGB LED Matrix 8×32 is an addressable LED panel designed for dynamic lighting and display applications. It features 256 WS2812B LEDs arranged in an 8×32 grid, each individually controllable via a single data line. The panel operates at 5V DC and supports full 24-bit RGB color control, enabling precise animations, text scrolling, and graphic rendering. Built on a flexible PCB, it can be gently bent to fit curved surfaces while maintaining reliable performance. Ideal for interactive displays, wearable electronics, and embedded lighting projects.

• WS2812B addressable LED technology with single-wire control

• 256 individually controllable RGB LEDs (8×32 matrix)

• 24-bit color depth for full RGB spectrum

• Flexible PCB construction for curved surface mounting

• Compatible with Arduino, Raspberry Pi, and microcontrollers

• Cascadable design via 3-pin JST SM connectors
• High brightness SMD5050 LED package

• Supports animations, text scrolling, and graphics display

• Standard NeoPixel protocol compatibility

• Low wiring complexity with single data input

• Uniform LED spacing for consistent visual output

• Expandable to larger displays through chaining

• Suitable for portable and fixed installations

• Operating Voltage: 5V DC

• LED Type: WS2812B (SMD5050)

• LED Quantity: 256 LEDs (8×32 matrix)

• Color Resolution: 24-bit RGB (Red, Green, Blue)

• Max Power Consumption: 61.44W

• Max Current Draw: 4.2A (full white brightness)

• Recommended Power Supply: 5V 3A minimum

• Control Signal: Single-wire digital data (DIN/DOUT)

• PCB Type: Flexible bendable PCB

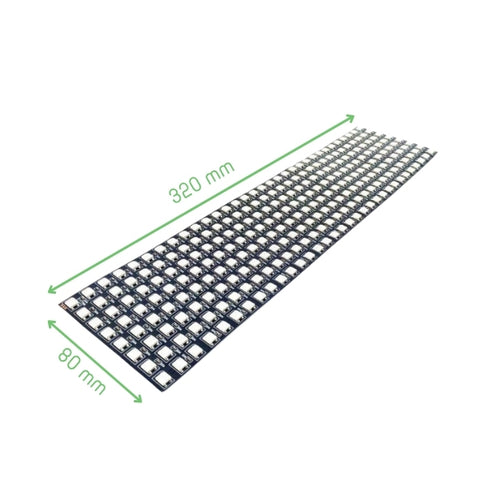

• Dimensions: 320 × 80 mm

• Waterproof Rating: No

• Expansion Interface: 3-pin JST SM connectors

• Operating Temperature: -20°C to 60°C

• Compatibility: Arduino, Raspberry Pi, ESP32, NeoPixel libraries
