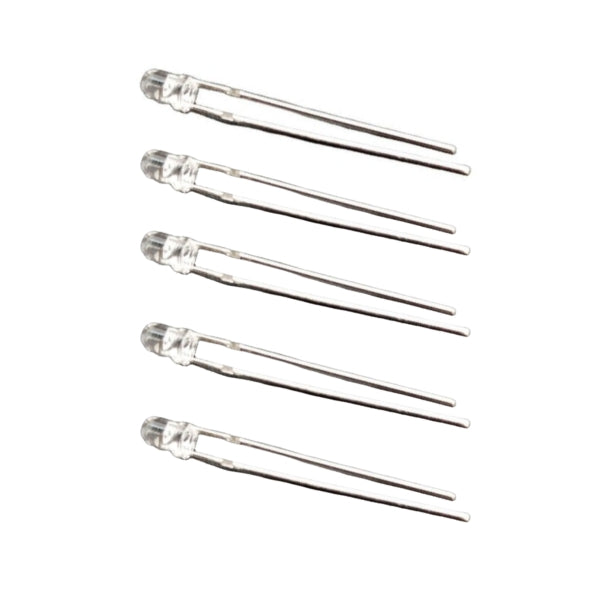

Clear 3mm Yellow LED – Diffused Lens (5 Pack)

The Clear 3mm Yellow LED is a standard through-hole indicator LED designed for electronic circuits, status indication, and low-power lighting applications. It features a diffused 3mm lens that provides soft and uniform yellow illumination with a forward voltage range of 5V DC. Designed for stable operation at up to 20mA forward current, this LED is suitable for breadboards, embedded systems, DIY electronics, and educational projects. Its compact package and reliable optical performance make it compatible with a wide range of prototyping and PCB applications.

• 3mm through-hole LED package

• Diffused yellow lens design

• Soft and uniform light output

• Forward voltage range of 5V

• Maximum forward current up to 20mA

• Recommended operating current of 16–18mA

• Luminous intensity up to 100mcd

• Standard two-pin configuration

• Suitable for breadboards and PCBs

• Compatible with 3.3V and 5V systems

• Low power consumption design

• Fast response illumination

• Reliable long-term operation

• Suitable for indicators and displays

• Supplied as a 5-piece pack

• LED Type: Yellow Diffused LED

• Lens Diameter: 3mm

• Lens Style: Clear Diffused

• Light Color: Yellow

• Forward Voltage: 5V DC

• Maximum Forward Current: 20mA

• Recommended Operating Current: 16–18mA

• Luminous Intensity: 40–100mcd

• Viewing Angle: Diffused Wide Angle

• Mounting Type: Through-Hole

• Pin Configuration: Anode and Cathode

• Response Time: Fast Switching

• Compatibility: Breadboards, Arduino, Raspberry Pi, PCB Projects

• Package Quantity: 5 LEDs
