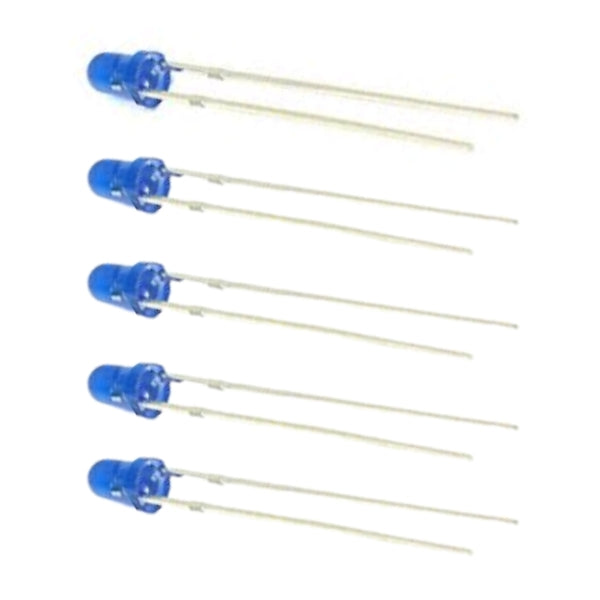

Blue 3mm LED – Diffused Lens (5 Pack)

The Blue 3mm LED is a standard through-hole indicator LED designed for electronic circuits, status indication, and embedded applications. It features a compact 3 mm diffused lens that provides soft and uniform blue illumination with wide visibility. Designed for stable low-power operation, the LED supports typical forward current ratings up to 20 mA and is suitable for breadboards, PCB assemblies, and educational electronics projects. Ideal for power indicators, signal visualization, DIY electronics, and prototyping applications.

• 3 mm through-hole LED package
• Diffused blue lens for soft light output

• Suitable for breadboard and PCB mounting

• Low power consumption design

• Wide viewing angle illumination

• Standard 2-pin configuration

• Compatible with 5V systems

• Stable operation up to 20 mA current

• Suitable for indicator applications

• Compact size for dense PCB layouts

• Fast response switching performance

• Durable epoxy lens construction

• Suitable for DIY and educational projects

• Compatible with common resistor networks

• Supplied in 5-piece pack

• LED Type: Blue Diffused Through-Hole LED

• Lens Diameter: 3 mm

• Lens Style: Diffused

• Light Color: Blue

• Forward Voltage: 5V DC

• Maximum Forward Current: 20 mA

• Recommended Operating Current: 16–18 mA

• Luminous Intensity: 40–100 mcd

• Viewing Angle: Wide Angle Diffused Output

• Mounting Type: Through-Hole

• Lead Configuration: 2-Pin

• Polarity: Anode and Cathode

• Body Material: Epoxy Resin

• Operating Temperature: -25°C to 85°C

• Package Quantity: 5 LEDs
