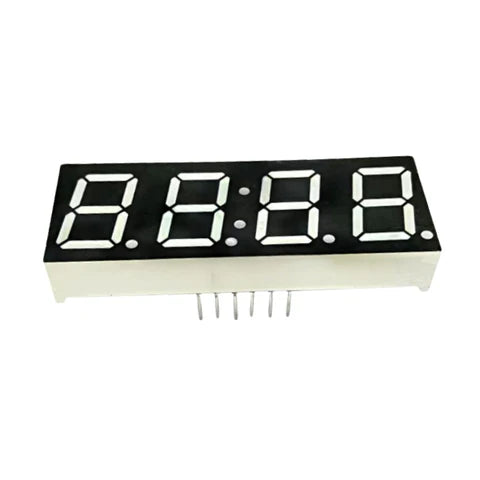

4 Digit 7-Segment Display 3641BS – Common Anode, 0.36 Inch

The 3641BS 4-digit 7-segment display is a compact electronic display module designed for presenting numerical data in embedded and digital systems. It features a common anode configuration with red LED segments and operates at a typical forward voltage of 1.99V per segment. Built for stable and consistent performance, it provides clear visibility and reliable operation across various control circuits. This display is suitable for integration with microcontrollers and driver ICs in applications such as digital clocks, counters, measurement devices, and basic user interfaces.

• 4-digit seven-segment LED display module

• Common anode configuration for simplified control

• Red LED segments for clear numeric visibility

• Compact 0.36 inch digit height

• Typical forward voltage of 1.99V per segment

• Multiplexing support for efficient pin usage

• High contrast display for indoor applications

• Standard pin layout for easy PCB integration

• Compatible with microcontrollers and driver ICs

• Low power consumption during operation

• Uniform brightness across all segments

• Suitable for multiplexed and static driving modes

• Durable epoxy package construction

• Fast response time for real-time display updates


• Display type: 4-digit 7-segment LED

• Model number: 3641BS

• Configuration: Common anode

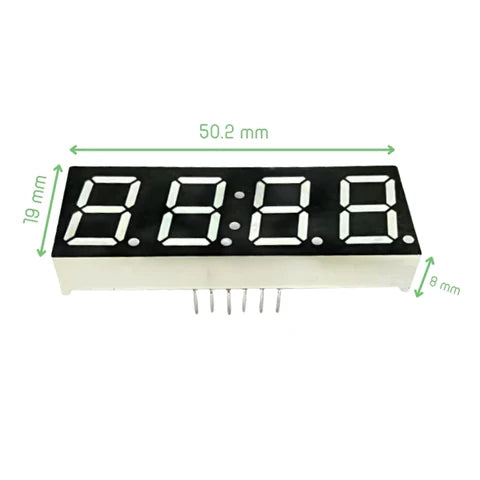

• Digit height: 0.36 inch (9.14 mm)

• Segment color: Red

• Forward voltage (per segment): 1.8–2.2V (typical 1.99V)

• Forward current (per segment): 10–20 mA

• Peak forward current: 30 mA

• Power consumption: Low power LED operation

• Viewing angle: 60°–120°

• Operating temperature: -20°C to +70°C

• Storage temperature: -40°C to +85°C

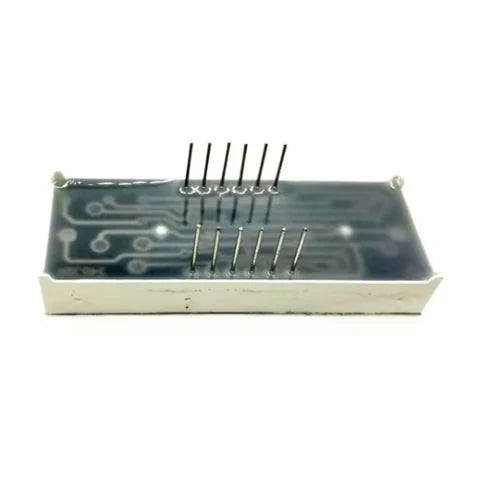

• Pin count: 12 pins

• Mounting type: Through-hole
