10 Segment LED Bar Graph – Red Display Module

The 10 Segment LED Bar Graph – Red Display Module is a compact visual output component designed for signal level indication and data visualization. It consists of 10 individual red LEDs integrated into a single package, each with separate anode and cathode connections for flexible control. The module provides consistent brightness and reliable performance for real-time display applications. Its simple interface allows easy integration with microcontrollers and digital circuits. Ideal for audio level meters, battery indicators, and embedded system feedback displays.

• 10 individual red LEDs in single package

• Independent anode and cathode per segment

• Compact form factor for space-saving designs

• High visibility red light output

• Suitable for multiplexing or direct drive

• Standard pin spacing for easy PCB mounting

• Low power consumption per segment

• Fast response time for real-time indication

• Compatible with microcontrollers and logic circuits

• Uniform brightness across all segments

• Durable epoxy package construction

• Easy integration in breadboards and PCBs

• Number of Segments: 10 LEDs

• LED Color: Red

• Forward Voltage (per LED): 1.8–2.2V

• Forward Current (per LED): 10–20mA

• Power Consumption: Low power operation

• Configuration: Individual anode and cathode pins

• Mounting Type: Through-hole

• Package Type: DIP (Dual Inline Package)

• Pin Count: 20 pins

• Segment Size: Standard bar segment layout

• Viewing Angle: Wide viewing angle

• Operating Temperature: -20°C to +85°C

• Material: Epoxy resin package

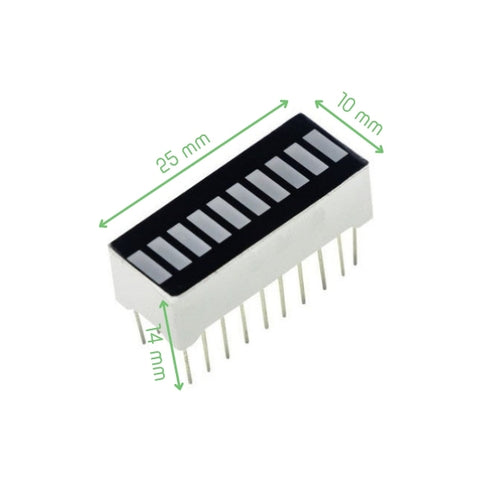

• Dimensions: Approx. 25 × 10 × 8 mm

• Compatibility: Microcontrollers, Arduino, digital circuits
