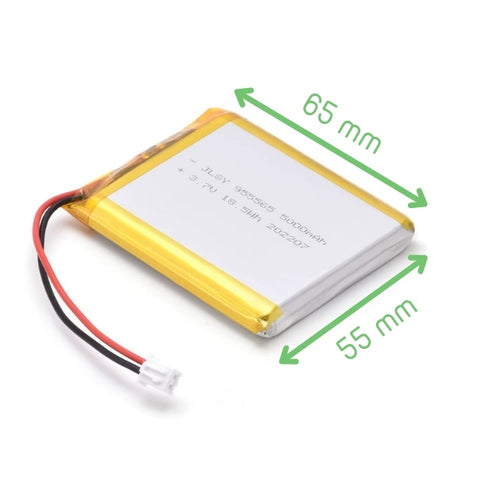

Lithium-Ion Polymer Battery – 3.7V 5000mAh with JST-PH Connector

The Lithium-Ion Polymer Battery 3.7V 5000mAh is a high-capacity rechargeable power source designed for portable electronics, robotics, IoT systems, embedded devices, and battery-powered projects requiring extended operating time. Utilizing lithium-polymer technology, the battery delivers a nominal voltage of 3.7V, reaching 4.2V when fully charged and operating safely down to 3.0V through its integrated protection circuitry. It comes pre-attached with a genuine 2-pin JST-PH connector for quick and convenient integration into compatible devices. Built-in protection safeguards against overcharging, over-discharging, and short circuits, ensuring reliable and safe operation.

• Lithium-ion polymer rechargeable battery technology

• High-capacity 5000mAh energy storage

• Nominal output voltage of 3.7V

• Fully charged voltage up to 4.2V

• Integrated overcharge protection circuitry

• Integrated over-discharge protection

• Short-circuit protection system

• Genuine 2-pin JST-PH connector pre-installed

• Extended runtime for portable applications

• Lightweight and compact LiPo design

• Suitable for robotics and IoT systems

• Reliable power source for embedded electronics

• Rechargeable using Li-Ion/LiPo CC/CV chargers

• Ready for direct integration into compatible projects

• Battery Type: Lithium-Ion Polymer (LiPo)

• Nominal Voltage: 3.7V

• Fully Charged Voltage: 4.2V

• Cutoff Voltage: 3.0V

• Capacity: 5000mAh

• Battery Connector: 2-Pin JST-PH

• Rechargeable: Yes

• Protection Circuit: Integrated

• Overcharge Protection: Yes

• Over-Discharge Protection: Yes

• Short-Circuit Protection: Yes

• Charging Method: Constant Current / Constant Voltage (CC/CV)

• Battery Chemistry: Lithium Polymer

• Application: Portable Electronics and Embedded Systems
