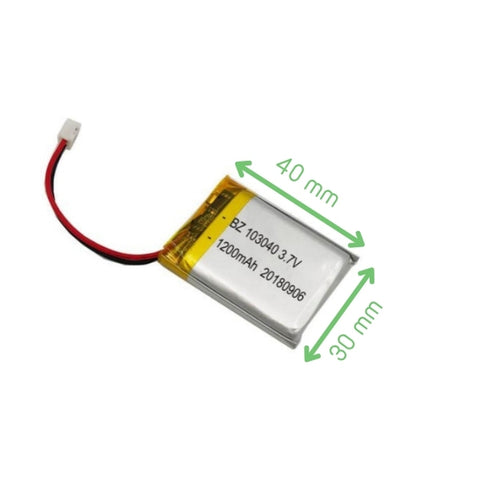

Lithium-Ion Polymer Battery – 3.7V 1200mAh with JST-PH Connector

The Lithium-Ion Polymer Battery 3.7V 1200mAh is a lightweight and rechargeable power source designed for portable electronics, robotics, IoT devices, and embedded systems. Utilizing lithium-polymer technology, it provides a nominal voltage of 3.7V, reaching 4.2V when fully charged and safely operating down to 3.0V under protection control. The battery comes pre-attached with a genuine 2-pin JST-PH connector and integrated protection circuitry that safeguards against overcharging, over-discharging, and short circuits. With a capacity of 1200mAh, it offers extended runtime while maintaining a compact and lightweight design suitable for battery-powered applications.

• Lithium-ion polymer rechargeable battery technology

• 1200mAh energy storage capacity

• Nominal output voltage of 3.7V

• Fully charged voltage up to 4.2V

• Integrated overcharge protection circuitry



• Integrated over-discharge protection

• Short-circuit protection system

• Genuine 2-pin JST-PH connector pre-installed

• Lightweight and compact battery design

• Suitable for portable electronic devices

• Reliable power source for embedded systems

• Extended operating time for mobile applications

• Rechargeable using Li-Ion/LiPo chargers

• Ideal for robotics, IoT, and DIY electronics

• Battery Type: Lithium-Ion Polymer (LiPo)

• Nominal Voltage: 3.7V

• Fully Charged Voltage: 4.2V

• Cutoff Voltage: 3.0V

• Capacity: 1200mAh

• Battery Connector: 2-Pin JST-PH

• Rechargeable: Yes

• Protection Circuit: Integrated

• Overcharge Protection: Yes

• Over-Discharge Protection: Yes

• Short-Circuit Protection: Yes

• Charging Method: Constant Current / Constant Voltage (CC/CV)

• Application: Portable Electronics and Embedded Systems
