6S 15A 22.2V 18650 Li-ion Battery Protection Board (BMS)

  • Sale
  • Regular price 19 QAR
  • Product ID: VT-1854
    9 in stock


    Add an extra layer of protection to the charging and discharging mechanism of the 18650 Batteries in your project.

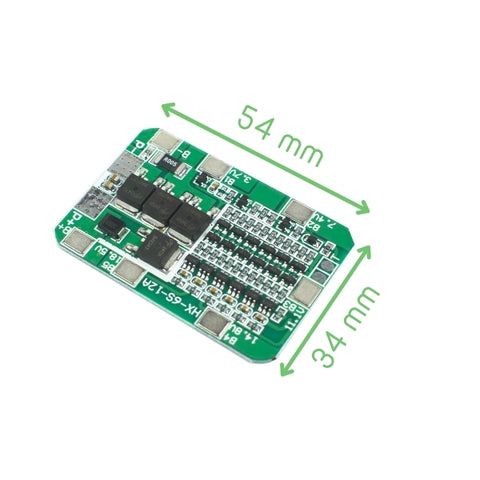

    • Size: approx.50*30*2mm
    • Lampshift maximum discharge current: 15A
    • Instantaneous discharge current: 25A
    • Charging voltage: 25.5V
    • Charging current: 15A (MAX)
    • Overcharge detection voltage: 4.28 ± 0.05V
    • Overcharge protection delay: 0.1S
    • Overcharge release voltage: 4.08 ± 0.05V
    • Over discharge detection voltage: 2.55 ± 0.08V
    • Overdischarge detection delay: 0.1S
    • The overdischarge release voltage: 2.9 ± 0.1V
    • Overcurrent detection voltage: 150mV
    • Overcurrent detection delay: 9MS
    • Overcurrent protection current: 30 ± 3A
    • Overcurrent protection release condition: Disconnect the load
    • Short circuit detection delay: 250uS
    • Short circuit protection Release condition: disconnect negative open
    • Main circuit conduction resistance: ≤20mΩ
    • Working current: ≤30uA
    • Sleep current (battery over discharge) ≤10uA
    • Temperature range: -30 / + 80 ℃
