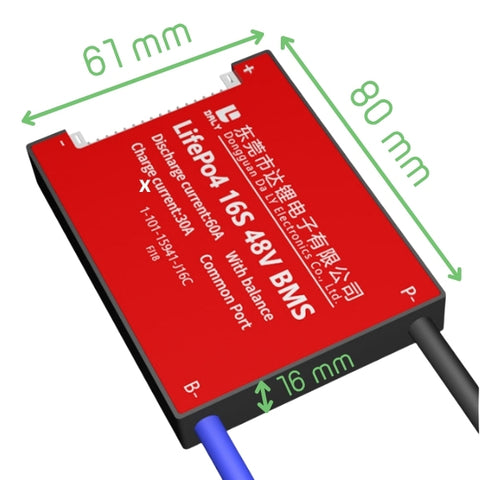

16S 48V 60A LiFePO4 Battery Protection Board (BMS) – Cell Balancing

The 16S 48V 60A LiFePO4 Battery Protection Board (BMS) is a battery management system designed for 16-cell LiFePO4 battery packs used in energy storage systems, solar lighting, electric vehicles, backup power solutions, and industrial applications. It provides comprehensive battery protection, including overcharge, over-discharge, over-current, and cell voltage monitoring. The integrated passive balancing function helps maintain uniform cell voltages, improving battery performance and lifespan. With a continuous discharge current of up to 60A and a charging current of up to 30A, this BMS is suitable for medium- to high-power battery pack applications.

• Designed for 16S LiFePO4 battery packs

• Supports 48V battery systems

• Continuous discharge current up to 60A

• Charging current up to 30A

• Cell over-voltage protection

• Cell under-voltage protection

• Over-current protection

• Battery pack monitoring and management

• Passive cell balancing function

• State of charge calculation support

• Improves battery lifespan and reliability

• Suitable for solar energy storage systems

• Compact PCB design for battery integration

• Enhanced battery safety during charging and discharging




• Battery Type: LiFePO4

• Battery Configuration: 16S (16 Cells in Series)

• Nominal Battery Voltage: 48V

• Charge Voltage: 62V

• Maximum Charge Current: 30A

• Continuous Discharge Current: 60A

• Balancing Method: Passive Balancing

• Overcharge Protection: Yes

• Over-Discharge Protection: Yes

• Over-Current Protection: Yes

• Cell Voltage Monitoring: Yes

• State of Charge Calculation: Supported

• Application: Battery Pack Protection and Management

• PCB Type: Battery Management System (BMS)
