Raspberry Pi PoE+ HAT Power Expansion Board – Ethernet Power And Cooling
Sale
Regular price 84 QAR
Product ID: VT-4163
This product is available.
We do not currently have an estimate for arrival date. Contact us for urgent custom order!
Description
Features
Specification
Links
Toutrials
Reviews
Questions & Answers
Description
The Raspberry Pi PoE+ HAT is a power expansion board designed to supply power to Raspberry Pi systems through Power over Ethernet networks. It supports PoE+ operation with power delivery of up to 25.5 W over a standard CAT5 Ethernet cable. The board is powered directly from the Ethernet connection and eliminates the need for an external power adapter. It is built for stable operation in network-based installations. The PoE+ HAT is suitable for embedded systems, network deployments, and industrial Raspberry Pi applications.
Features
Power over Ethernet Plus PoE+ support
Up to 25.5 W power delivery
CAT5 Ethernet power and data connection
Integrated DC power conversion circuitry
Onboard cooling fan for thermal management
Powered directly from Ethernet network
Compatible with Raspberry Pi 40-pin GPIO boards
Specification
Operating Voltage: 5V DC
Power Input: Power over Ethernet PoE+
Maximum Power Delivery: 25.5 W
Ethernet Standard: IEEE 802.3at
Network Interface: Ethernet via Raspberry Pi RJ45
Cooling: Integrated brushless fan
Power Regulation: Onboard DC-DC converter
Mounting Interface: 40-pin GPIO header with PoE header

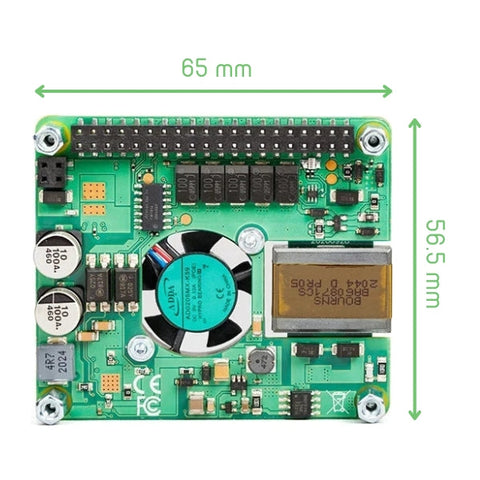

Dimensions: 65 × 56 mm
Operating Temperature: 0 to 50 °C
Compatibility: Raspberry Pi boards with PoE header support
