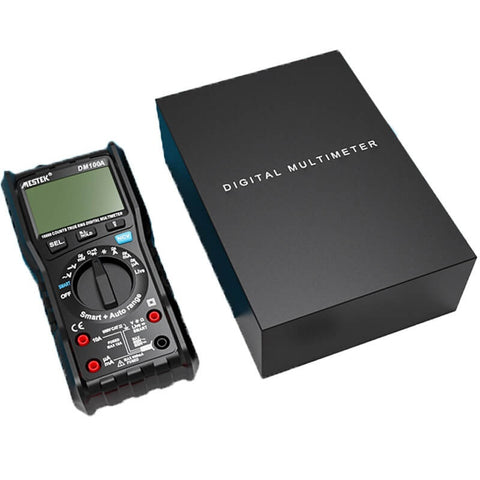

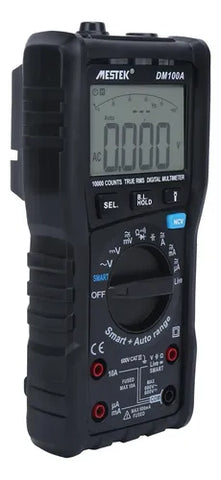

MESTEK DM100A Smart Auto Range Digital Multimeter

The MESTEK DM100A is a 10000-count smart digital multimeter designed for accurate electrical measurements and advanced troubleshooting applications. Featuring automatic ranging, True RMS measurement, and non-contact voltage detection, it provides reliable readings for AC/DC voltage, current, resistance, capacitance, and frequency testing. The large backlit display, integrated flashlight, and intelligent measurement functions enhance usability in both laboratory and field environments. With live wire detection, diode and continuity testing, and fuse burn alerts, the DM100A is a versatile tool for electronics, electrical maintenance, and professional diagnostics.

• 10000-count high-resolution display

• Smart automatic measurement mode

• Auto-ranging functionality

• True RMS AC voltage and current measurement

• Non-contact AC voltage detection

• Live wire identification function

• AC/DC voltage measurement

• AC/DC current measurement up to 10A

• Resistance measurement up to 100MΩ

• Capacitance measurement up to 100mF

• Automatic diode and continuity testing

• Frequency measurement capability

• Backlit display for low-light environments

• Integrated LED flashlight

• Fuse burn alarm function

• Display Count: 10000 Counts
• Measurement Type: Smart Auto Range Digital Multimeter
• DC Voltage Range: 1000mV to 600V
• AC Voltage Range: 1000mV to 600V
• DC Current Range: Up to 10A
• AC Current Range: Up to 10A
• Resistance Range: Up to 100MΩ
• Capacitance Range: Up to 100mF
• AC Voltage Measurement: True RMS
• AC Current Measurement: True RMS
• AC Voltage Bandwidth: 1kHz
• Data Hold Function: Supported
• Diode Test: Supported
• Continuity Test: Automatic Detection
• Frequency Measurement: Supported
• Non-Contact Voltage Detection: Supported
• Live Wire Detection: Supported
• Backlight: Supported
• Flashlight: Integrated LED
• Fuse Burn Alarm: Supported
• Auto Range: Supported
