DFRobot Gravity ENS160 Air Quality Sensor – TVOC eCO2 AQI I2C

The DFRobot Gravity ENS160 Air Quality Sensor is an indoor air monitoring module based on the ScioSense ENS160 sensor chip. It measures TVOC, eCO2, and AQI values using advanced MOX sensing technology with TrueVOC™ processing for improved accuracy and fast response. The sensor features intelligent on-chip algorithms and automatic baseline correction to ensure long-term measurement stability. Operating from 3.3–5.5V with an I2C interface, it integrates easily into embedded systems and is suitable for smart home devices, HVAC control, and environmental monitoring applications.

• ScioSense ENS160 MOX sensing element

• TrueVOC™ technology for enhanced accuracy

• Measures TVOC concentration up to 65000ppb

• eCO2 estimation from 400–65000ppm

• Integrated AQI index output

• I2C digital communication interface

• Dual selectable I2C addresses 0x52 0x53

• Automatic baseline correction algorithm

• Fast response after 3-minute preheat

• Wide 3.3–5.5V supply range

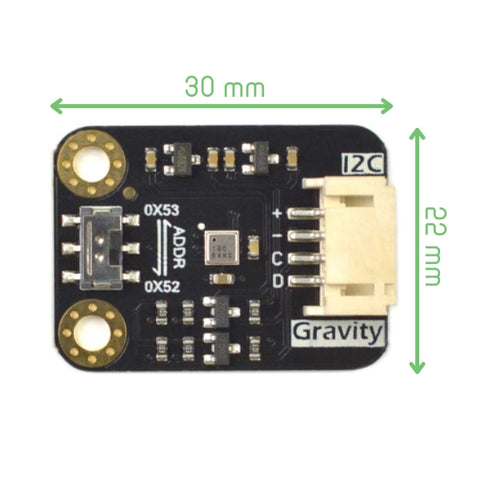

• Compact 30 × 22 mm PCB

• Operating Voltage: 3.3–5.5V DC

• Working Current: 29mA

• Communication Interface: I2C

• I2C Address: 0x52 or 0x53

• TVOC Measurement Range: 0–65000ppb

• eCO2 Measurement Range: 400–65000ppm

• AQI Output: 1–5 Index Scale

• Operating Temperature: -40–85°C

• Operating Humidity: 5–95% RH

• Preheat Time: 3 minutes

• PCB Dimensions: 30 × 22 mm


• Product wiki
• Schematics
• Dimension
• ENS160 Manual

• DFRobot Gravity ENS160 Air Quality Sensor Tutorial
