DFRobot Gravity Analog Electrical Conductivity Sensor – K10 Probe

The DFRobot Gravity Analog Electrical Conductivity Sensor – K10 is designed for measuring high electrical conductivity liquids such as seawater and concentrated brine. It supports a 3.0–5.0V supply and provides a 0–3.2V analog output compatible with Arduino and Raspberry Pi platforms. The AC excitation method reduces electrode polarization, improving measurement stability and extending probe lifespan. Featuring a laboratory-grade K=10 probe and single-point calibration library with automatic buffer recognition, it offers reliable performance for marine aquaculture, aquariums, and high-salinity water quality monitoring applications.

Tips:

This product does not contain a temperature sensor. In order to ensure the measurement accuracy, it is strongly recommended to add a temperature sensor to measure the temperature and achieve automatic temperature compensation. DS18B20 waterproof temperature sensor can be used.

• Laboratory-grade K=10 conductivity probe

• 10–100 mS/cm high conductivity measurement range

• AC excitation signal for reduced polarization

• 3.0–5.0V wide operating voltage

• 0–3.2V analog voltage output

• ±5% full-scale measurement accuracy

• Single-point calibration with auto buffer recognition

• Integrated temperature compensation algorithm support

• BNC probe connector for secure connection

• Gravity PH2.0-3Pin interface for plug-and-play use

• Compatible with Arduino and Raspberry Pi

• Uniform Gravity mechanical form factor


• Supply Voltage: 3.0–5.0V DC

• Output Voltage: 0–3.2V

• Measurement Range: 10–100mS/cm
• Measurement Accuracy: ±5% F.S.

• Cell Constant: 10±2

• Excitation Method: AC Signal

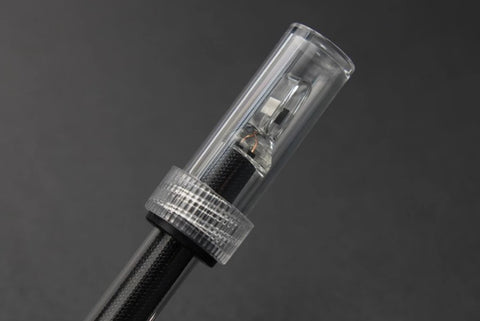

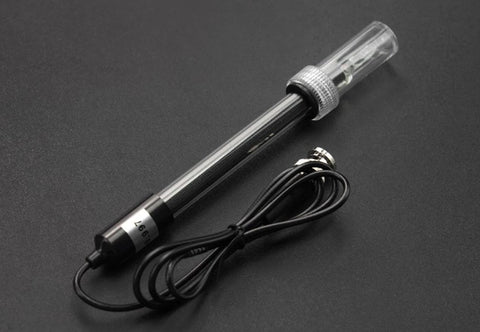

• Probe Type: Laboratory Grade

• Probe Connector: BNC

• Signal Connector: PH2.0-3Pin

• Operating Temperature: 0–40°C

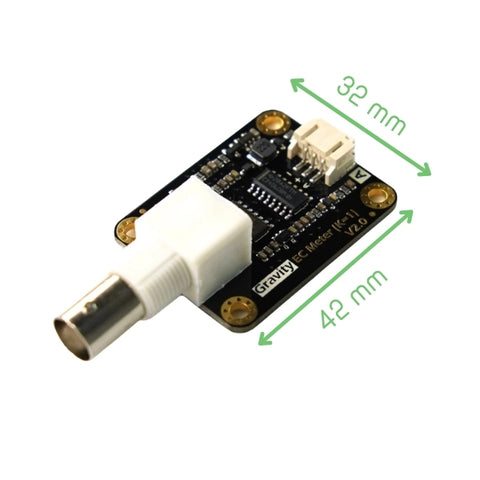

• Board Size: 42mm × 32mm

• Cable Length: 100±2cm

• Probe Life: >0.5 year


• PCB Layout
• Probe Dimension
