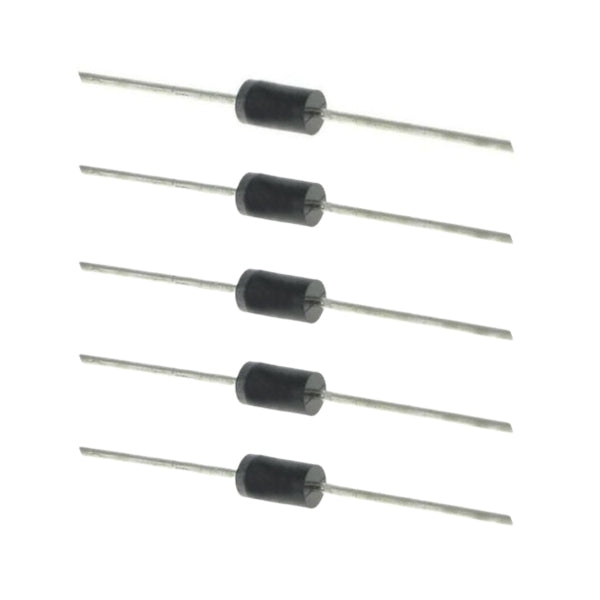

General Purpose Diode 3A 400V – 1N5404 (5 pcs)

The 1N5404 is a general-purpose rectifier diode designed for power supply, voltage protection, and high-current rectification applications. It supports a continuous forward current of up to 3A and a peak repetitive reverse voltage of 400V. The diode features stable electrical performance, low leakage current, and reliable operation in AC-to-DC conversion circuits. Its axial-lead package allows easy integration into power electronics, battery chargers, adapters, and industrial control systems.

• 3A average forward rectified current

• 400V peak repetitive reverse voltage

• Low reverse leakage current

• High surge current capability

• Axial-lead through-hole package

• Reliable AC-to-DC rectification

• Suitable for power supply circuits

• Stable thermal performance

• Low forward voltage drop

• High current handling design

• Durable epoxy-coated body

• Compatible with PCB and breadboard assembly

• Suitable for voltage protection applications

• Fast recovery characteristics for general rectification

• Supplied as a pack of 5 pieces

• Diode Type: General Purpose Rectifier Diode

• Model: 1N5404

• Package Type: DO-201AD Axial Lead

• Average Forward Current: 3A

• Peak Repetitive Reverse Voltage: 400V

• RMS Reverse Voltage: 280V

• DC Blocking Voltage: 400V

• Forward Voltage Drop: 1.0V @ 3A

• Peak Forward Surge Current: 200A

• Reverse Leakage Current: 10µA Maximum

• Power Dissipation: 6.25W

• Operating Junction Temperature: -55°C to +150°C

• Mounting Type: Through-Hole

• Polarity Marking: Cathode Band

• Quantity: 5 Pieces
