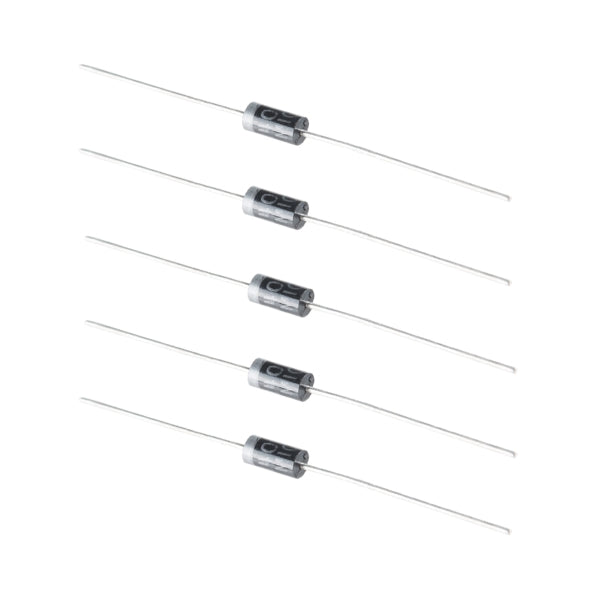

General Purpose Rectifier Diode 1A 400V – 1N4004 (5 PCS)

The 1N4004 is a general-purpose rectifier diode designed for power rectification, reverse polarity protection, and DC circuit applications. It supports a maximum repetitive reverse voltage of 400V and a forward current of up to 1A, making it suitable for low- to medium-power electronic designs. The axial lead package allows easy through-hole mounting on PCBs and breadboards. Commonly used in power supplies, voltage converters, battery protection circuits, and embedded electronics projects.

• General-purpose silicon rectifier diode

• Maximum repetitive reverse voltage up to 400V

• Continuous forward current up to 1A

• Low forward voltage drop design

• Axial lead through-hole package

• Reliable reverse polarity protection

• Suitable for AC to DC rectification

• High surge current capability

• Stable thermal performance

• Compatible with breadboards and PCBs

• Compact and lightweight construction

• Commonly used in power supply circuits

• Suitable for DIY and educational electronics

• RoHS compliant semiconductor component

• Diode Type: General Purpose Rectifier Diode

• Model: 1N4004

• Package Type: DO-41 Axial Lead

• Maximum Repetitive Reverse Voltage: 400V

• RMS Reverse Voltage: 280V

• DC Blocking Voltage: 400V

• Average Forward Rectified Current: 1A

• Peak Forward Surge Current: 30A

• Forward Voltage Drop: 1.1V Max @ 1A

• Reverse Current: 5µA Max

• Operating Junction Temperature: -55°C to +150°C

• Mounting Type: Through Hole

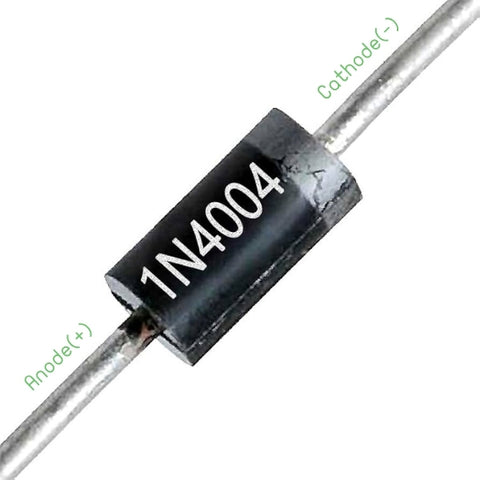

• Polarity: Cathode Band Marked

• Package Quantity: 5 PCS
