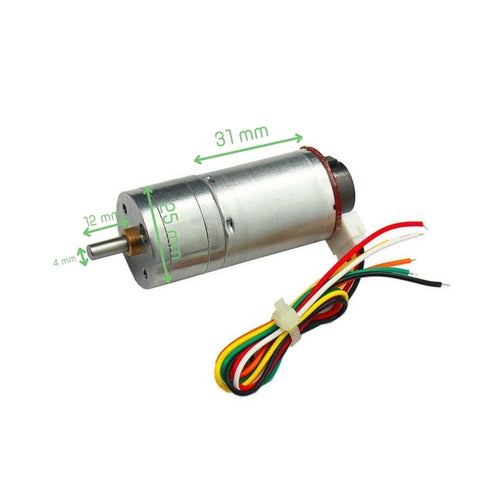

Geared Brushed DC Motor with Encoder – 12V 130RPM Magnetic Hall Sensor

The Geared Brushed DC Motor with Encoder is a precision motor designed for position feedback and motion control applications. It integrates a magnetic hall effect encoder that provides accurate rotational data for closed-loop control systems. Operating at 12V DC with a 1:75 gear ratio, it delivers stable speed and reliable torque performance. The encoder requires a 5V microcontroller interface for signal processing, ensuring compatibility with common development platforms. Ideal for robotics, automation systems, and embedded control projects.

• Magnetic hall effect encoder for position feedback
• High resolution encoder up to 823.1 PPR
• 12V DC operation for stable performance
• 1:75 gear reduction for increased torque
• Rated speed 130 RPM output
• D-type shaft for secure coupling
• Compact design for embedded systems
• Bidirectional rotation support
• Low no-load current consumption
• High stall torque up to 6.5 kg.cm
• Compatible with 5V microcontrollers
• Pre-soldered encoder output wires
• Suitable for closed-loop control systems

Specification:

• Operating Voltage: 12V DC

• Rated Speed: 130 RPM

• No Load Speed: 100 RPM

• No Load Current: 0.13A

• Max Efficiency Torque: 1 kg.cm

• Max Efficiency Speed: 80 RPM

• Max Efficiency Current: 0.5A

• Max Power Torque: 3 kg.cm

• Max Power Speed: 55 RPM

• Max Power Current: 1A

• Stall Torque: 6.5 kg.cm

• Stall Current: 3A

• Gear Ratio: 1:75

• Encoder Type: Magnetic Hall Effect

• Encoder Resolution: 823.1 PPR

• Shaft Diameter: 4 mm

• Shaft Length: 12 mm

• Wire Length: 200 mm
