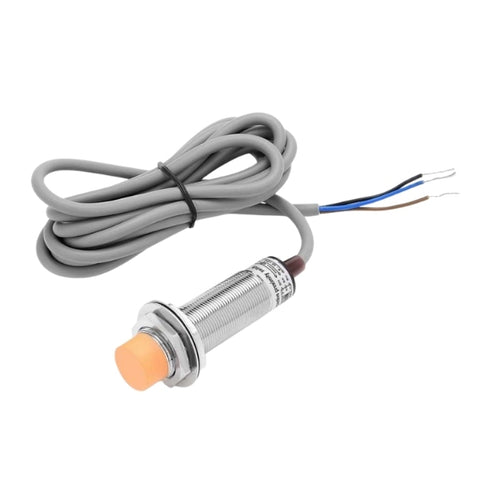

LJC18A3-B-Z/BX Capacitive Proximity Sensor – 6–36V DC

The LJC18A3-B-Z/BX capacitive proximity sensor is designed for reliable non-contact detection of objects in industrial automation systems. It detects both metallic and non-metallic materials such as plastics, liquids, wood, and powders using capacitive sensing technology. The sensor operates with a wide 6–36V DC supply and provides a stable normally-open output signal for control circuits and PLC inputs. Its threaded cylindrical metal housing ensures secure installation and resistance to dust and moisture in demanding environments. Ideal for level detection, object sensing, and automation control applications.

• Capacitive sensing technology for metal and non-metal detection

• 8 mm adjustable sensing distance

• Wide operating voltage range 6–36V DC

• Normally open output configuration

• High switching frequency up to 1500 Hz

• Fast response time of 1 ms

• Cylindrical threaded metal housing

• IP67 protection against dust and water

• Stable operation in industrial environments

• 3-wire interface for easy controller integration

• 2 m cable connection for flexible installation

• Suitable for PLC and automation systems

• Model: LJC18A3-B-Z/BX

• Sensor Type: Capacitive Proximity Sensor

• Supply Voltage: 6-36V DC

• Sensing Distance: 8 mm (Adjustable)

• Output Type: Normally Open (NO)

• Current Consumption: ≤10 mA

• Switching Frequency: 1500 Hz

• Response Time: 1 ms

• Connection Type: 3-Wire Cable

• Cable Length: 2 m

• Housing Material: Nickel-plated Brass / Metal

• Protection Rating: IP67

• Operating Temperature: −25°C to 70°C

• Sensor Diameter: 18 mm

• Body Length: 70 mm
