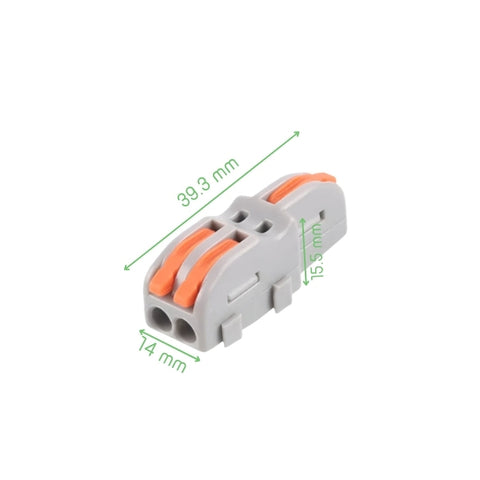

2-Way Fast Wire Splitter – 1 Input 2 Output Lever Connector

The 2-Way Fast Wire Splitter is a compact lever-operated wire connector designed for quick and reliable low-voltage wiring connections. It features one input and two output terminals, allowing efficient wire branching for power distribution, grounding, and signal connections. The snap-action lever design supports tool-free installation and secure wire retention for 28–12AWG conductors. Rated up to 450V and 32A, it is suitable for prototyping, electronics projects, LED wiring, and embedded system applications.

• 1 input and 2 output wire connection design

• Lever-lock mechanism for tool-free wiring

• Compatible with 28–12AWG wires

• Supports solid and stranded conductors

• Rated for up to 450V operation

• Maximum current rating of 32A

• Reusable connector body design

• Fast wire insertion and removal process

• Compact housing for tight installations

• Transparent housing for wire inspection

• Secure spring-clamp wire retention

• Suitable for low-voltage DC applications

• Reliable distribution for power and ground lines

• No screws or crimping required

• Insulated housing for safe handling

• Connector Type: 2-Way Fast Wire Splitter

• Connection Configuration: 1 Input, 2 Outputs

• Wiring Method: Lever Clamp Connection

• Supported Wire Gauge: 28–12AWG

• Supported Wire Size: 0.08–4mm²

• Rated Voltage: 450V

• Rated Current: 32A

• Conductor Type: Solid and Stranded Wire

• Housing Material: Flame-Retardant Plastic

• Contact Material: Copper Alloy

• Mounting Type: Inline Wire Connection

• Connection Style: Tool-Free Lever Lock

• Reusable: Yes

• Recommended Application: Low-Voltage Projects

• Insulation Type: Fully Insulated Housing
