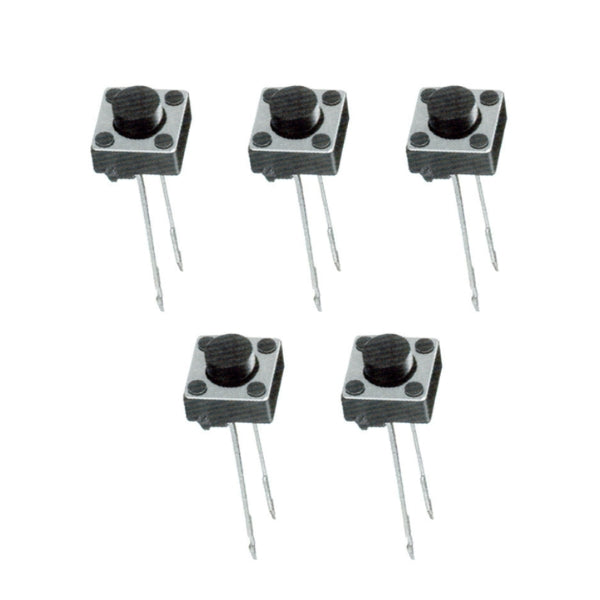

2 Pin Tactile Push Button Switch – 6×6×5mm (5 Pack)

The 2 Pin Tactile Push Button Switch is a compact momentary switch designed for electronic circuits, prototyping, and embedded systems. It features a 6×6×5 mm body with extended 7 mm leads for secure breadboard and PCB mounting. The switch provides a clear tactile feedback with a reliable click mechanism, ensuring consistent operation during repeated use. Rated for low-current applications up to 50 mA, it is suitable for signal-level switching. Ideal for reset circuits, user input interfaces, and DIY electronics projects.

• Momentary SPST tactile switch mechanism

• Compact 6×6 mm footprint design

• Strong tactile click feedback

• Rated current up to 50 mA

• Through-hole mounting with 7 mm leads

• Breadboard compatible pin spacing

• Durable mechanical construction

• Low contact resistance design

• Fast response switching action

• Suitable for low-voltage circuits

• Easy integration into PCB layouts

• Reliable performance under repeated use

• Lightweight and compact form factor

• Switch Type: SPST Momentary Tactile Switch

• Number of Pins: 2

• Operating Type: Normally Open (NO)

• Rated Current: 50 mA

• Rated Voltage: 12V DC (typical low-voltage use)

• Contact Resistance: ≤ 100 mΩ

• Insulation Resistance: ≥ 100 MΩ

• Actuation Force: ~160–260 gf

• Travel Distance: ~0.25 mm

• Mechanical Life: ≥ 100,000 cycles

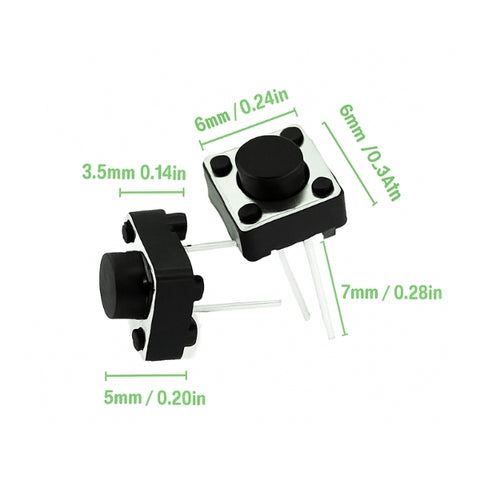

• Dimensions: 6 × 6 × 5 mm

• Pin Length: 7 mm

• Mounting Type: Through-Hole

• Operating Temperature: -25°C to +70°C
