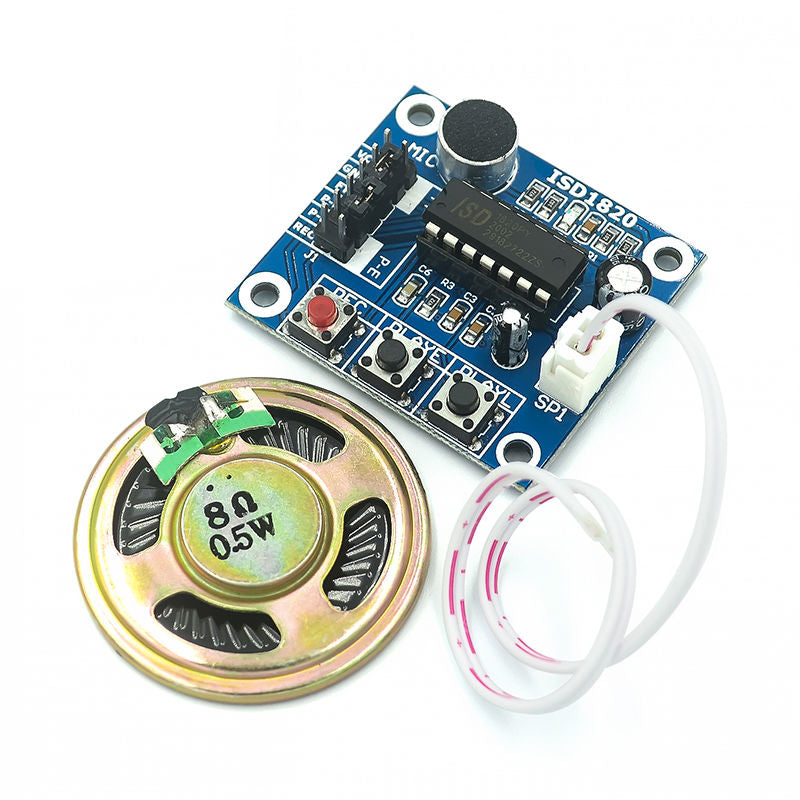

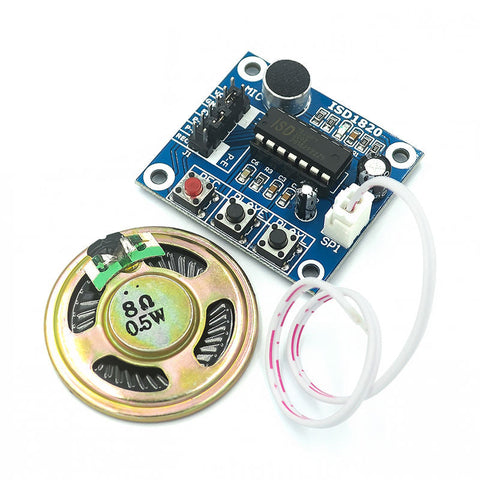

Recording Module with 0.5W Speaker

Part ID: VT-2017
  • Sale
  • Regular price 19 QAR

Features
  • Main chip: ISD1820
  • Size: 38mm * 42.5mm
  • Working voltage: DC 3-5V
  • easy to use 10 seconds voice recording and playback
  • high quality, natural voice reproduction
  • can be used as a megaphone module
  • with loop play, jog play, single pass play function
  • can be controlled by single chip microcomputer
  • this module can directly drive 8 Euro 0.5W small speaker

Buttons:
  • Recording and playback control mode: button control or single-chip microcomputer, control line IO has been led;
  • Button control recording and playback operation method:
  • REC button: Record button, press and hold to record, release button to stop recording;
  • play button: trigger mode playback, press to play the current entire segment of the voice;
  • play button: jog mode put Tone, press and hold to play, release to stop playback;
  • RPL jumper: loop playback mode control, can be played cyclically;
  • FT jumper: through control, can make microphone voice through to the speaker playback;
