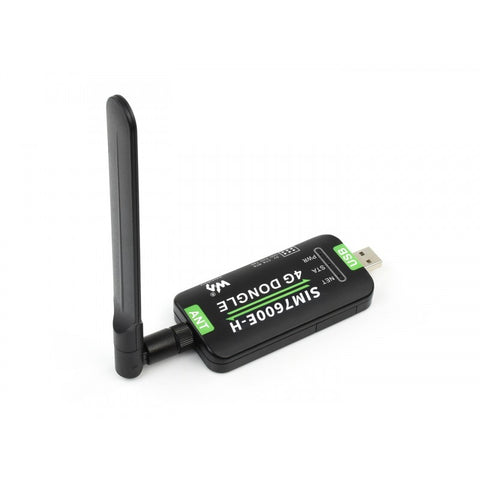

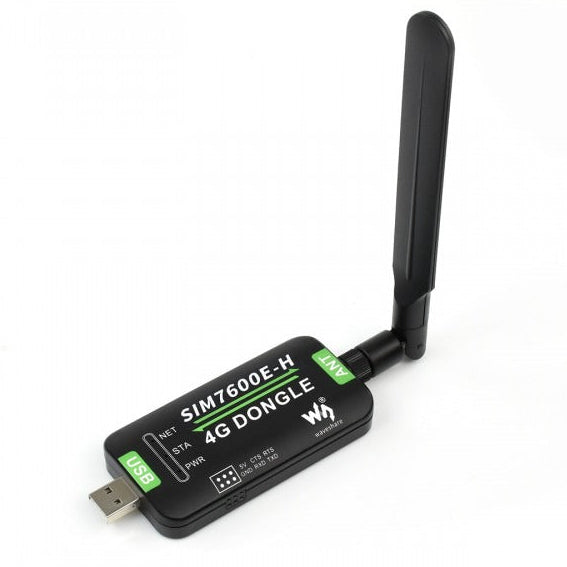

Waveshare SIM7600E-H 4G LTE USB Dongle – Industrial Cellular Modem

The Waveshare SIM7600E-H is an industrial-grade 4G LTE USB dongle designed to provide reliable cellular connectivity for computers and embedded systems. It supports LTE downlink speeds up to 150 Mbps and uplink speeds up to 50 Mbps, with compatibility across Windows and Linux operating systems. The device connects directly via USB to PCs, laptops, Raspberry Pi, and industrial computers, enabling quick deployment without complex configuration. Built for stable operation, it also offers UART access for embedded control and integrated GNSS support for positioning applications. It is suitable for IoT gateways, remote monitoring, and mobile data communication systems.

• Industrial-grade SIM7600E-H cellular module

• 4G LTE downlink speed up to 150 Mbps

• 4G LTE uplink speed up to 50 Mbps

• 2G / 3G / 4G network support

• Wide regional band support for EMEA and Asia

• USB interface for ARM and x86 hosts

• UART interface with hardware flow control

• Integrated GNSS support (GPS, BeiDou, GLONASS, LBS)

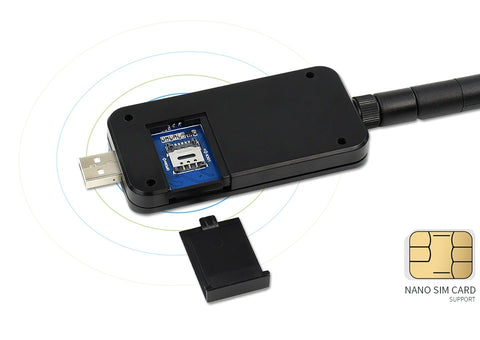

• Nano SIM card slot supporting 1.8 V and 3 V SIM

• TCP/IP, IPv4, IPv6, HTTP, HTTPS, FTP protocol support

• AUX antenna connector with embedded FPC antenna

• Three onboard LED status indicators

• Driver support for Windows and Linux

• Compact enclosure for portable and industrial use


• Cellular Module: SIM7600E-H

• Network Technology: 2G / 3G / 4G LTE

• LTE Downlink Rate: Up to 150 Mbps

• LTE Uplink Rate: Up to 50 Mbps

• USB Interface: USB 2.0

• UART Interface: UART with hardware flow control

• Baud Rate Range: 300 bps ~ 4 Mbps

• Default Baud Rate: 115200 bps

• Auto Baud Rate: 9600 bps ~ 115200 bps

• SIM Card Type: Nano SIM, 1.8 V / 3 V

• GNSS Support: GPS, BeiDou, GLONASS, LBS

• Antenna Connectors: LTE antenna, AUX antenna, GNSS antenna

• LED Indicators: 3 status LEDs

• Supported OS: Windows, Linux

• Wiki: SIM7600E-H_4G_DONGLE

• Waveshare 4G DONGLE for PC, Raspberry Pi It is available for global area basec on the SIM7600G-H
